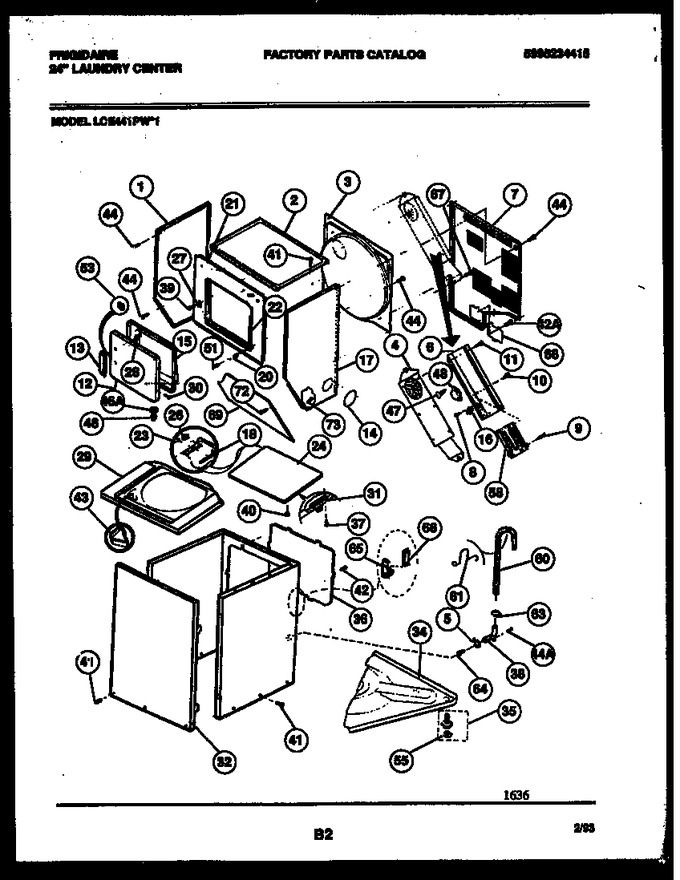

02 - Cabinet Parts And Heater


03 - Console, Controls And Drum


04 - Dryer Motor, Blower And Belt


05 - Tubs, Water Valve And Lid Switch


06 - Motor And Idler Arm Clutch


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3204949		Panel-top (almond)		Appelez-nous	-
3	3017111		Panel-rear		Appelez-nous	-
4	08015820		Pane--front		Appelez-nous	-
5	5364154013		Clamp		Appelez-nous	-
6	3205055		Duct Rear		Appelez-nous	-
7	3016426		Panel-ventilation		Appelez-nous	-
8	5303285470		Screw		Appelez-nous	-
9	3161234		Screw		Appelez-nous	-
10	5303285470		Screw-heater		Appelez-nous	-
11	5303285470		Screw - Duct (10)		Appelez-nous	-
12	3016429		Door-outer (almond)		Appelez-nous	-
13	5303285455		Handle - Door				$ 58.96
14	3204953		Cover-exhaust (almond)		Appelez-nous	-
15	3016435		Door-inner (almond)		Appelez-nous	-
16	08015853		Thermostat-safety		Appelez-nous	-
17	5303209764		Panel-side Rh (almond)		Appelez-nous	-
18	3205942		Hinge Bar		Appelez-nous	-
20	3204959		Hinge-door (2)		Appelez-nous	-
21	3204963		Panel-front (almd)		Appelez-nous	-
22	5303206877		Seal - Door		Appelez-nous	-
23	5303211089		Screw (4)		Appelez-nous	-
24	3204966		Lid (almd)		Appelez-nous	-
26	3204362		Grommet-hinge		Appelez-nous	-
27	5303292720		Spring - Latch		Appelez-nous	-
28	5308006553		Screw		Appelez-nous	-
29	5303207100		Panel-top (almd)		Appelez-nous	-
30	5303161187		Screw		Appelez-nous	-
31	131390000		Lid Strike   (Replaces: 3204970)				$ 55.19
32	3204975		Panel-front (almd)		Appelez-nous	-
34	5303283018		Base		Appelez-nous	-
35	5303272067		Leveling Leg (4)		Appelez-nous	-
36	3204980		Panel-rear		Appelez-nous	-
37	3204368		Screw				$ 13.01
38	5308015078		Coupler		Appelez-nous	-
39	3161237		Rivet		Appelez-nous	-
40	3204981		Bumper (2)		Appelez-nous	-
41	08001578		Screw (9)		Appelez-nous	-
42	5303207399		Screw		Appelez-nous	-
43	3204983		Dispenser-bleach		Appelez-nous	-
44	08011280		Screw		Appelez-nous	-
46	3016440		Pin-hinge (2)		Appelez-nous	-
47	3204269		Screw		Appelez-nous	-
48	5303208647		Thermal Limiter		Appelez-nous	-
51	5303161187		Screw		Appelez-nous	-
53	3016442		Strike Plate				$ 4.87
55	5303004083		Pad-legs (4)		Appelez-nous	-
57	5303161185		Screw		Appelez-nous	-
58	08015795		Heater Assembly		Appelez-nous	-
60	5303292372		Hose - Drain				$ 50.51
61	5303204987		Retainer-hose		Appelez-nous	-
63	F140887026		Clamp		Appelez-nous	-
64	5308014555		Check Valve		Appelez-nous	-
65	5303161252		Bracket-capacitor		Appelez-nous	-
66	5308014903		Capacitor		Appelez-nous	-
67	5303285470		Screw		Appelez-nous	-
68	5303212087		Cover - Terminal		Appelez-nous	-
69	3204992		Panel-access (almd)		Appelez-nous	-
72	5303207397		Screw		Appelez-nous	-
73	3161240		Screw		Appelez-nous	-
*71721	3204957		Hinge Gasket (2)		Appelez-nous	-
*71721	5303937030		Insulation - Rear & Vent Panels		Appelez-nous	-
*71721	08027621		Screw Tip		Appelez-nous	-
*71721	3161250		Cable Tie-drain Hose		Appelez-nous	-
*71721	134890500		Assist Spring-washer Lid (2)   (Replaces: 5303212876)				$ 19.85
1A	5303209762		Panel-side-rlh (almond)		Appelez-nous	-
42A	5303285470		Screw		Appelez-nous	-
44A	3204984		Screw		Appelez-nous	-
46A	5303208633		Washer		Appelez-nous	-
