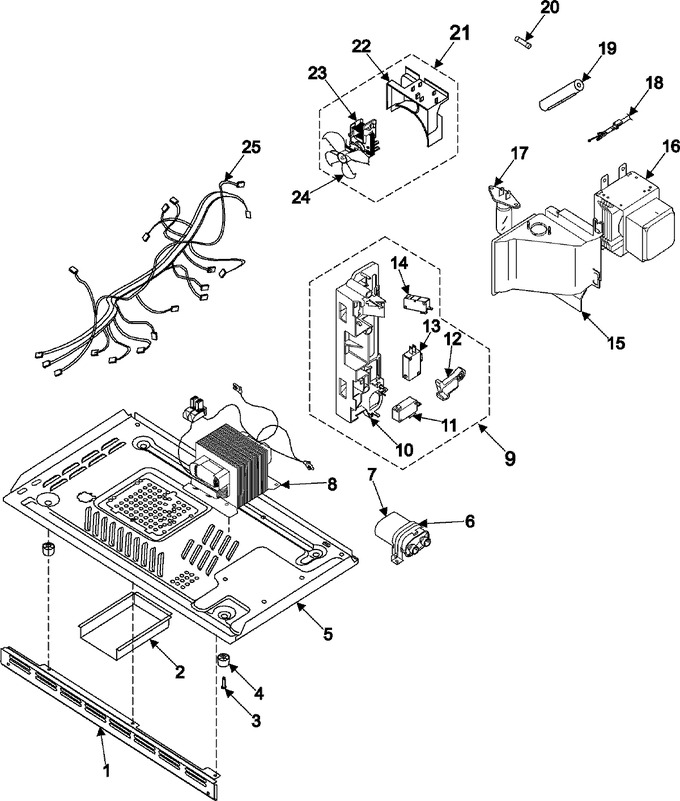

01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE64-00562A | Trim-lower |
|
- | |||||
| 2 | DE70-40311A | Plate-bottom |
|
- | |||||
| 3 | DE60-60025A | Pin, Foot |
|
$ 0.85 | |||||
| 4 | DE61-40065A | Foot |
|
$ 17.58 | |||||
| 5 | Y00000000 | See Note De61-00557c Not Available |
|
- | |||||
| 6 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 7 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 8 | DE26-00088A | Transformer, H.v. |
|
- | |||||
| 9 | DE96-00115A | Assy Body Latch |
|
- | |||||
| 10 | DE72-00138A | Body-latch |
|
- | |||||
| 11 | 3405-001042 | Switch-micro |
|
- | |||||
| 12 | DE66-00088A | Lever-switch |
|
- | |||||
| 13 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 14 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 15 | DE63-00208A | Cover-air |
|
- | |||||
| 16 | WPW10126794 | Magnetron (Replaces: W10126792) |
|
$ 282.22 | |||||
| 17 | WP8183592 | Lamp-incandescent (Replaces: 4713-001102) |
|
$ 41.09 | |||||
| 18 | DE39-20037J | Assy Power Cord |
|
- | |||||
| 19 | DE47-40025A | Holder, Fuse |
|
- | |||||
| 20 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 21 | DE96-00305A | Fan Motor Assy |
|
- | |||||
| 22 | DE63-00210A | Cover-blower |
|
- | |||||
| 23 | DE31-10185B | Motor-fan |
|
- | |||||
| 24 | DE31-90057A | Blade-fan |
|
$ 17.58 | |||||
| 25 | DE39-00256A | Wire Harness-a |
|
- |
