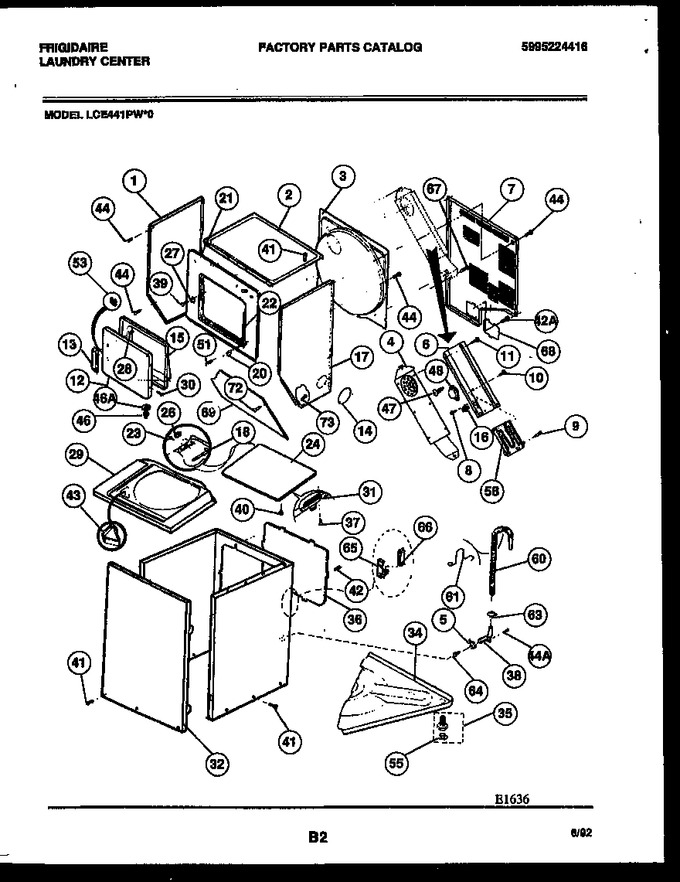

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209761 | Panel-sidl-lh Dryer (white) |
|
- | |||||
| 2 | 3204948 | Panel-top (white) |
|
- | |||||
| 3 | 3017111 | Panel-rear |
|
- | |||||
| 4 | 08015820 | Panel-front |
|
- | |||||
| 5 | 5364154013 | Clamp |
|
- | |||||
| 6 | 3205055 | Duct Rear |
|
- | |||||
| 7 | 3016426 | Panel-ventilation |
|
- | |||||
| 8 | 5303285470 | Screw |
|
- | |||||
| 9 | 3161234 | Screw |
|
- | |||||
| 10 | 5303285470 | Screw-heater |
|
- | |||||
| 11 | 3017890 | Screw-duct (10) |
|
- | |||||
| 12 | 3016427 | Door-outer (white) |
|
- | |||||
| 13 | 5303285455 | Handle - Door |
|
$ 58.96 | |||||
| 14 | 3204952 | Cover-exhaust (white) |
|
- | |||||
| 15 | 3016433 | Door-inner (white) |
|
- | |||||
| 16 | 08015853 | Thermostat-safety |
|
- | |||||
| 17 | 5303209763 | Panel-side Rh (white) |
|
- | |||||
| 18 | 3205942 | Hinge Bar |
|
- | |||||
| 20 | 3204959 | Hinge-door (2) |
|
- | |||||
| 21 | 3204961 | Panel-front (white) |
|
- | |||||
| 22 | 5303206877 | Seal - Door |
|
- | |||||
| 23 | 5303211089 | Screw (4) |
|
- | |||||
| 24 | 3204965 | Lid (white) |
|
- | |||||
| 26 | 3204362 | Grommet-hinge |
|
- | |||||
| 27 | 3016439 | Spring-latch |
|
- | |||||
| 28 | 5308006553 | Screw |
|
- | |||||
| 29 | 5303207099 | Panel-top (white) |
|
- | |||||
| 30 | 5303161187 | Screw |
|
- | |||||
| 31 | 131390000 | Lid Strike (Replaces: 3204970) |
|
$ 55.19 | |||||
| 32 | 3204973 | Panel-front (white) |
|
- | |||||
| 34 | 5303283018 | Base |
|
- | |||||
| 35 | 5303272067 | Leveling Leg (4) |
|
- | |||||
| 36 | 3204980 | Panel-rear |
|
- | |||||
| 37 | 3204368 | Screw |
|
$ 13.01 | |||||
| 38 | 3161452 | Coupler |
|
$ 34.39 | |||||
| 39 | 3161237 | Rivet |
|
- | |||||
| 40 | 3204981 | Bumper (2) |
|
- | |||||
| 41 | 08001578 | Screw (9) |
|
- | |||||
| 42 | 5303207399 | Screw |
|
- | |||||
| 43 | 3204983 | Dispenser-bleach |
|
- | |||||
| 44 | 08011280 | Screw |
|
- | |||||
| 46 | 3016440 | Pin-hinge (2) |
|
- | |||||
| 47 | 3204269 | Screw |
|
- | |||||
| 48 | 5303208647 | Thermal Limiter |
|
- | |||||
| 51 | 5303285467 | Screw |
|
- | |||||
| 53 | 3016442 | Strike Plate |
|
$ 4.87 | |||||
| 55 | 5303004083 | Pad-legs (4) |
|
- | |||||
| 57 | 5303161185 | Screw |
|
- | |||||
| 58 | 08015795 | Heater Assembly |
|
- | |||||
| 60 | 3205414 | Hose-drain |
|
- | |||||
| 61 | 5303204987 | Retainer-hose |
|
- | |||||
| 63 | 5364154013 | Clamp |
|
- | |||||
| 64 | 3204375 | Check Valve |
|
$ 48.06 | |||||
| 65 | 5303161252 | Bracket-capacitor |
|
- | |||||
| 66 | 5308014903 | Capacitor |
|
- | |||||
| 67 | 5303161233 | Screw |
|
- | |||||
| 68 | 5303212087 | Cover - Terminal |
|
- | |||||
| 69 | 3204991 | Panel-access (white) |
|
- | |||||
| 72 | 5308011318 | Screw |
|
- | |||||
| 73 | 3161240 | Screw |
|
- | |||||
| *62709 | 134890500 | Assist Spring-washer Lid (2) (Replaces: 5303212876) |
|
$ 19.85 | |||||
| *62709 | 5303937030 | Insulation - Rear & Vent Panels |
|
- | |||||
| 42A | 5303161233 | Screw |
|
- | |||||
| 44A | 5303209461 | Screw |
|
- | |||||
| 46A | 5303208633 | Washer |
|
- |
