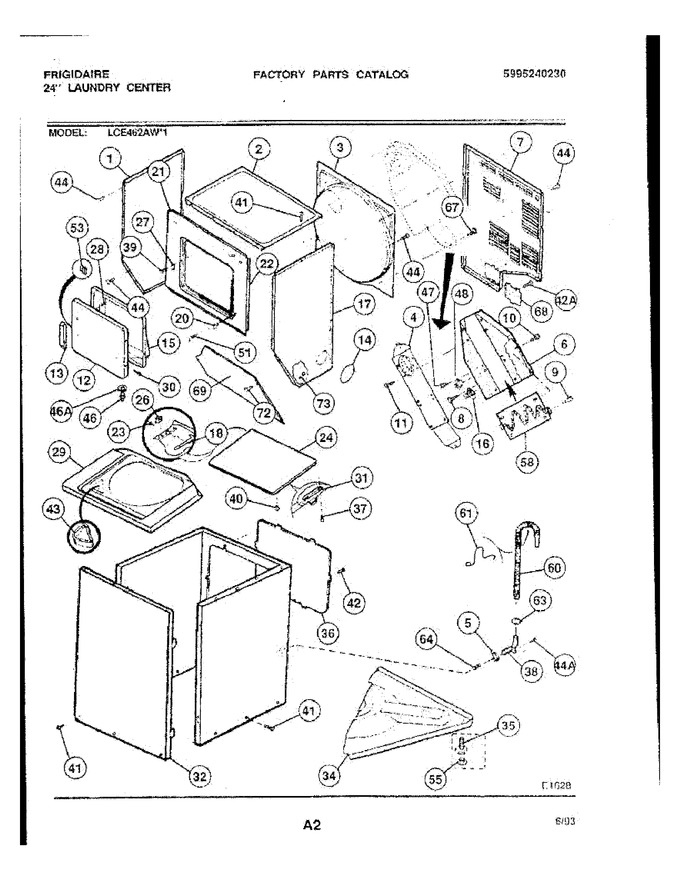

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209762 | Panel - Side Lh - Almd |
|
- | |||||
| 2 | 3204949 | Panel-top (almond) |
|
- | |||||
| 3 | 3017111 | Panel-rear |
|
- | |||||
| 4 | 08015820 | Panel-front |
|
- | |||||
| 5 | 5364154013 | Clamp |
|
- | |||||
| 6 | 3204951 | Duct Rear |
|
- | |||||
| 7 | 3016426 | Panel-ventilation |
|
- | |||||
| 8 | 5303285470 | Screw |
|
- | |||||
| 9 | 3161234 | Screw |
|
- | |||||
| 10 | 5303285470 | Screw - Heater (4) |
|
- | |||||
| 11 | 5303285470 | Screw - Duct (10) |
|
- | |||||
| 12 | 3016429 | Door-outer (almond) |
|
- | |||||
| 13 | 5303285455 | Handle - Door |
|
$ 58.96 | |||||
| 14 | 3204953 | Cove-exhaust-almond |
|
- | |||||
| 15 | 3016435 | Door-inner (almond) |
|
- | |||||
| 16 | 5308015856 | Thermostat - Safety |
|
- | |||||
| 17 | 5303209764 | Panel - Side Rh - Almd |
|
- | |||||
| 18 | 3205942 | Hinge Bar-lh |
|
- | |||||
| 20 | 3204959 | Hinge-door (2) |
|
- | |||||
| 21 | 3204963 | Panel-front (almd) |
|
- | |||||
| 22 | 5303206877 | Seal - Door |
|
- | |||||
| 23 | 5303211089 | Screw (4) |
|
- | |||||
| 24 | 3204966 | Lid (almond) |
|
- | |||||
| 26 | 3204362 | Grommet-hinge |
|
- | |||||
| 27 | 5303292720 | Spring - Latch |
|
- | |||||
| 28 | 5308006553 | Screw |
|
- | |||||
| 29 | 5303207100 | Panel-top (almd) |
|
- | |||||
| 30 | 5303161187 | Screw |
|
- | |||||
| 31 | 131390000 | Strike-lid (Replaces: 3204970) |
|
$ 55.19 | |||||
| 32 | 3204975 | Panel-front (almd) |
|
- | |||||
| 34 | 131157606 | Base |
|
- | |||||
| 35 | 5303272067 | Leg Leveling (4) |
|
- | |||||
| 36 | 3204980 | Panel-rear |
|
- | |||||
| 37 | 3204368 | Screw |
|
$ 13.01 | |||||
| 38 | 5308015078 | Coupler |
|
- | |||||
| 39 | 3161237 | Rivet |
|
- | |||||
| 40 | 3204981 | Bumper (2) |
|
- | |||||
| 41 | 08001578 | Screw (9) |
|
- | |||||
| 42 | 5303207399 | Screw |
|
- | |||||
| 43 | 3204983 | Dispenser-bleach |
|
- | |||||
| 44 | 08011280 | Screw |
|
- | |||||
| 46 | 3016440 | Pin-hinge (2) |
|
- | |||||
| 47 | 3204269 | Screw |
|
- | |||||
| 48 | 5303209894 | Thermal Limiter |
|
- | |||||
| 51 | 5303161187 | Screw |
|
- | |||||
| 53 | 3016442 | Plate-strike |
|
$ 4.87 | |||||
| 55 | 5303004083 | Pad - Legs |
|
- | |||||
| 57 | 5303161185 | Screw |
|
- | |||||
| 58 | 5303161050 | Heater Assy |
|
- | |||||
| 60 | 5303292372 | Hose - Drain |
|
$ 50.51 | |||||
| 61 | 5303204987 | Retainer-hose |
|
- | |||||
| 63 | F140887026 | Clamp |
|
- | |||||
| 64 | 5308014555 | Check Valve |
|
- | |||||
| 67 | 5303285470 | Screw |
|
- | |||||
| 68 | 5303212087 | Cover - Terminal |
|
- | |||||
| 69 | 3204992 | Panel-access (almd) |
|
- | |||||
| 72 | 5303207397 | Screw |
|
- | |||||
| 73 | 3161240 | Screw |
|
- | |||||
| *76830 | 0802761 | Screw Tip |
|
- | |||||
| *76830 | 134890500 | Assist Spring-washer Lid (Replaces: 5303212876) |
|
$ 19.85 | |||||
| *76830 | 5303937030 | Insulation - Rear & Vent Panels |
|
- | |||||
| *76830 | 3204957 | Hinge Gasket (2) |
|
- | |||||
| 42A | 5303285470 | Screw |
|
- | |||||
| 44A | 3204984 | Screw |
|
- | |||||
| 46A | 5303208633 | Washer |
|
- | |||||
| 63A | 3161250 | Tie-cable (non-illustrated) |
|
- |
