02 - Cabinet Parts And Heater


03 - Console, Control And Drum


04 - Dryer Motor, Blower And Belt


05 - Tubs, Water Valve And Lid Switch


06 - Motor And Idler Arm Clutch


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

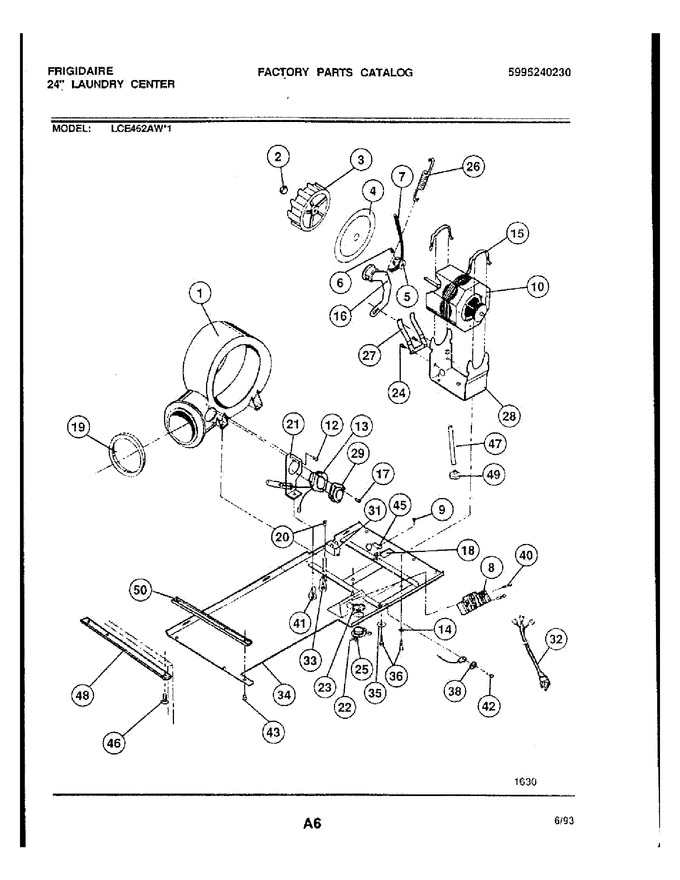

1	5303209767		Blower Housing				$ 151.10
2	5308001875		Spring Clip		Appelez-nous	-
3	5303209769		Wheel-blower				$ 173.51
4	5303209770		Plate		Appelez-nous	-
5	5303211473		Pulley - Motor		Appelez-nous	-
6	5308027520		Set Screw		Appelez-nous	-
7	5303161099		Belt - Drum				$ 56.02
8	3205019		Terminal Block		Appelez-nous	-
9	3161240		Screw		Appelez-nous	-
10	5303209771		Motor-dryer		Appelez-nous	-
12	5303285470		Screw		Appelez-nous	-
13	5303206879		Heater-thermostat		Appelez-nous	-
14	5363602000		Lock Washer		Appelez-nous	-
15	5308002293		Clip		Appelez-nous	-
16	5303161103		Idler Arm & Wheel Assembly		Appelez-nous	-
17	5303285470		Screw		Appelez-nous	-
18	5379171000		Terminal		Appelez-nous	-
19	5303209442		Gasket		Appelez-nous	-
20	08011280		Screw		Appelez-nous	-
21	3016464		Bracket		Appelez-nous	-
22	3016472		Body Assembly		Appelez-nous	-
23	5303016473		Nut		Appelez-nous	-
24	08004646		Screw		Appelez-nous	-
25	3016474		Screw		Appelez-nous	-
26	5308015828		Spring				$ 38.46
27	08015824		Retainer		Appelez-nous	-
28	3016466		Motor Cradle		Appelez-nous	-
29	5308015847		Thermostat - Control				$ 131.38
31	5308004087		Buzzer		Appelez-nous	-
32	5303212832		Power Cord		Appelez-nous	-
33	5308006553		Screw		Appelez-nous	-
34	3205024		Base-dryer		Appelez-nous	-
35	5308002468		Washer		Appelez-nous	-
36	5308027582		Screw		Appelez-nous	-
38	08001572		Cup Washer		Appelez-nous	-
40	3161274		Screw		Appelez-nous	-
41	08004646		Screw		Appelez-nous	-
42	3161275		Screw		Appelez-nous	-
43	5308027582		Screw		Appelez-nous	-
45	08006557		Retainer		Appelez-nous	-
46	5308027582		Screw		Appelez-nous	-
47	5304401845		Tube-pressure   (Replaces: 5303294290)				$ 58.12
48	3016468		Brace		Appelez-nous	-
49	08006559		Connector		Appelez-nous	-
50	3016469		Plate		Appelez-nous	-
NI	5306598047		Lubricant Nylube - Use On Idler Wheel Shaft		Appelez-nous	-
