SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly

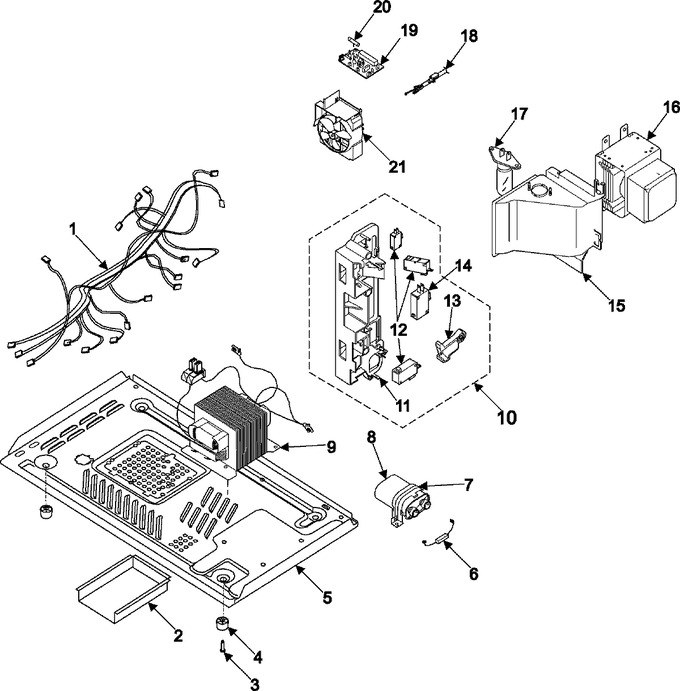

03 - Internal Control/latch Asy/base


04 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE39-00043A		Wire Harness-a		Appelez-nous	-
2	DE70-40311A		Plate-bottom		Appelez-nous	-
3	DE60-60025A		Pin, Foot				$ 0.85
4	DE61-40065A		Foot				$ 17.58
5	DE96-00042C		Assy Base Plate-sub		Appelez-nous	-
6	DE91-70063D		Assy-h.v.d.   (Replaces: DE91-70063A)			Immediately	$ 15.89
7	DE61-50106A		Bracket, Capacitor		Appelez-nous	-
8	2501-001105		C-oil		Appelez-nous	-
9	DE26-00019A		Trans-h.v				$ 124.98
10	DE96-00033A		Assy Body Latch		Appelez-nous	-
11	DE66-40001C		Latch-body		Appelez-nous	-
12	3405-000178		Switch-micro				$ 8.17
13	DE66-90114A		Lever-s/w		Appelez-nous	-
14	3405-000175		Switch-micro		Appelez-nous	-
15	DE71-60458A		Cover-air				$ 18.00
16	WPW10126794		Assy-magnetron   (Replaces: W10126804)				$ 282.22
17	4713-001012		Lamp-incandescent				$ 40.81
18	DE39-20037H		Assy Power Cord		Appelez-nous	-
19	555555		Assy Noise Filter   (Replaces: DE96-00012A)				$ 151.94
20	3601-000440		Fuse-ferrule		Appelez-nous	-
21	DE31-00002A		Motor-fan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
