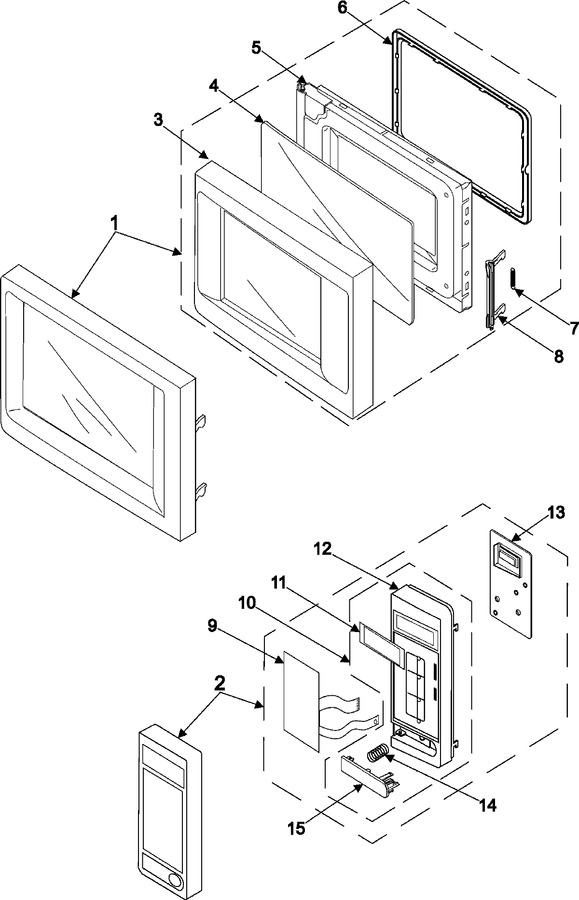

SELECT A DIAGRAM

01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Control/latch Asy/base


04 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE94-00075B		Assy Door-e		Appelez-nous	-
2	Y00000000		See Note Assy Control Box Currently Unavailable		Appelez-nous	-
3	DE64-00037E		Door-a		Appelez-nous	-
4	DE67-00011A		Screen-door(b)		Appelez-nous	-
5	DE94-00073B		Assy Door-sub		Appelez-nous	-
6	DE64-40012A		Door-c		Appelez-nous	-
7	DE61-70032A		Spring-key		Appelez-nous	-
8	DE64-40006F		Key, Door				$ 20.70
9	DE34-00199A		Touch Pad Membrane				$ 0.85
10	Y00000000		See Note Assy Control Panel Currently Unavailable		Appelez-nous	-
11	DE67-40003A		Window-display		Appelez-nous	-
12	555555		Control-panel   (Replaces: DE72-70161B)				$ 151.94
13	RA-W3USA-00		Assy Pcb Parts				$ 102.64
14	DE61-70076A		Spring, Button				$ 20.70
15	Y00000000		See Note Button-push Currently Unavailable		Appelez-nous	-
