02 - Splasher Control


03 - Cooktop Parts


04 - Lower Oven Door Parts


05 - Broiler Drawer Parts


06 - Control Panel


07 - Upper Oven Door Parts

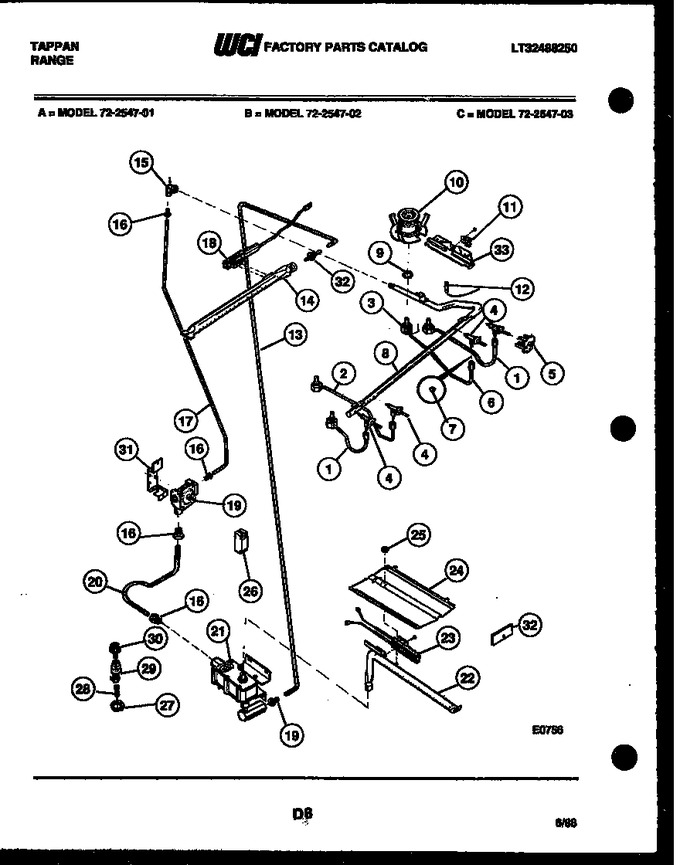

08 - Burner, Manifold And Gas Control


09 - Lower Body Parts


10 - Upper Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131970		Burner-tube (lf Rf)		Appelez-nous	-
4	3017542		Valve-top 2 Pos.		Appelez-nous	-
5	3131568		Ign.-switch		Appelez-nous	-
6	3131148		Nut Compresn (4)		Appelez-nous	-
7	247T074P01		Ferrule (4)		Appelez-nous	-
8	439T055P03		Manifold, Pipe		Appelez-nous	-
9	479T069P40		Nut, Special (4)		Appelez-nous	-
10	079T032S02		Burner, Top		Appelez-nous	-
11	612T121F01		Retainer Electros		Appelez-nous	-
12	3131686		Electrode (4)		Appelez-nous	-
13	3131643		Tube Supply Uppr Oven		Appelez-nous	-
14	079T026P01		Burner Upper Oven		Appelez-nous	-
15	215T013P01		Elbow 1/2 Np To 9/16-24		Appelez-nous	-
16	3131261		Fitting Loxit (4)		Appelez-nous	-
17	750T085H09		Tube Alum 3/8		Appelez-nous	-
18	316T023P06		Igniter-ovn Burner		Appelez-nous	-
19	166T011P01		Control - Regul		Appelez-nous	-
20	3131109		Tube Alum 3/8		Appelez-nous	-
21	774T116P11		Valve, Safety-dual		Appelez-nous	-
22	079T029P03		Burner - Oven		Appelez-nous	-
23	3131300		Igniter, Oven		Appelez-nous	-
24	3131327		Baffle, Oven		Appelez-nous	-
25	479T069P03		Nut		Appelez-nous	-
26	3131113		Spark Module		Appelez-nous	-
27	3131309		Nut Fuse		Appelez-nous	-
28	3131297		Fuse, Buss		Appelez-nous	-
29	597T042P01		Recept-fuse		Appelez-nous	-
30	123T126P01		Cap-fuse Recept.		Appelez-nous	-
31	3131110		Brkt Regul		Appelez-nous	-
32	3131641		Mixer-straight		Appelez-nous	-
33	136T355W03		Channel, Flash Tube		Appelez-nous	-
*92501	3051420		Pop Rivet		Appelez-nous	-
32A	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
32B	3131637		Brkt Mixer (non-illustrated)		Appelez-nous	-
32C	3131189		Clip Broiler (non-illustrated)		Appelez-nous	-
