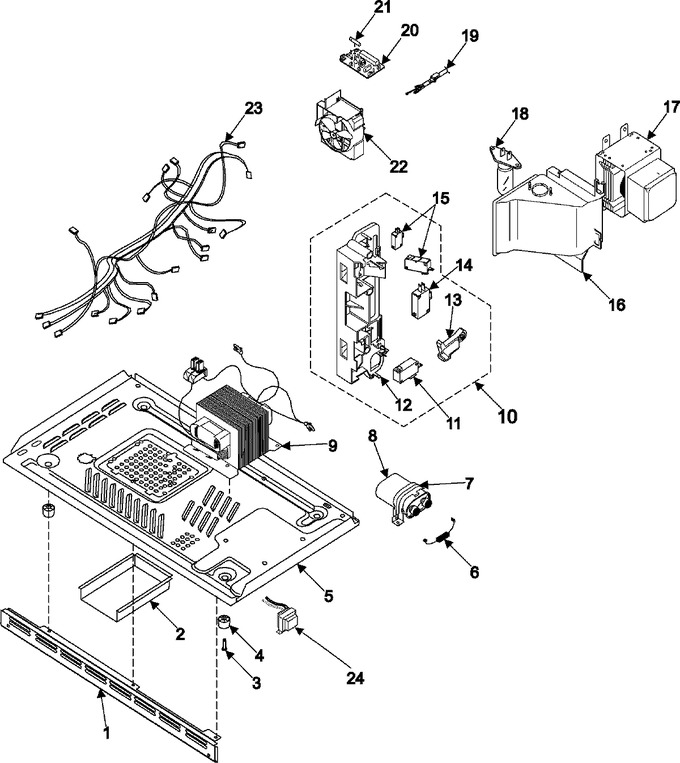

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE64-90152F | Trimmer-lower |
|
- | |||||
| 2 | DE70-40311A | Plate-bottom |
|
- | |||||
| 3 | DE60-60025A | Pin, Foot |
|
$ 0.85 | |||||
| 4 | DE61-40065A | Foot |
|
$ 17.58 | |||||
| 5 | DE80-10002E | Base-plate;sgcc,t0.8,w404,l633 |
|
- | |||||
| 6 | DE91-70063D | Diode-rectifier (Replaces: Y0402001554) |
|
Immediately | $ 15.89 | ||||
| 7 | DE61-50106A | Bracket, Capacitor |
|
- | |||||
| 8 | 8206562 | Capacitor (Replaces: 2501-001016) |
|
Immediately | $ 108.83 | ||||
| 9 | DE26-00088A | Transformer, H.v. |
|
- | |||||
| 10 | DE96-00005D | Assy Body Latch |
|
$ 57.94 | |||||
| 11 | 3405-001042 | Switch-micro |
|
- | |||||
| 12 | DE66-40001C | Latch-body |
|
- | |||||
| 13 | DE66-90114A | Lever-s/w |
|
- | |||||
| 14 | 3405-001032 | Switch-micro |
|
$ 22.17 | |||||
| 15 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 16 | DE71-60458A | Cover-air |
|
$ 18.00 | |||||
| 17 | WPW10126794 | Assy-magnetron:om75p(31)ess (Replaces: YOM75P31ESS) |
|
$ 282.22 | |||||
| 18 | 4713-001012 | Lamp-incandescent |
|
$ 40.81 | |||||
| 19 | DE39-20037H | Assy Power Cord |
|
- | |||||
| 20 | 555555 | Assy Noise Filter (Replaces: DE96-00012A) |
|
$ 151.94 | |||||
| 21 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) |
|
Immediately | $ 10.31 | ||||
| 22 | DE31-00001A | Motor-fan |
|
- | |||||
| 23 | DE39-00191A | Wire Harness-a |
|
- | |||||
| 24 | DE26-00037B | Trans-l.v |
|
- |
