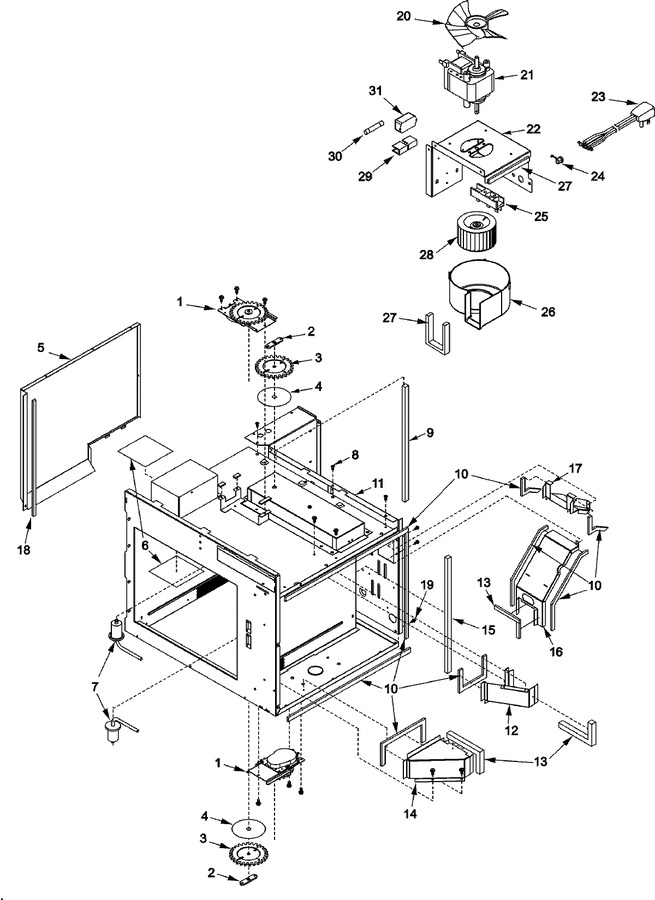

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	59002047		Screw-tf/hex Rohs		Appelez-nous	-
1	R0130263		Motor-antenna Stirrer (230v)				$ 87.98
2	12570201		Retainer,gear Shaft		Appelez-nous	-
3	12570101		Gear,spur		Appelez-nous	-
4	10903002		Washer, Spur Gear				$ 5.44
5	10781901		Duct, Exhaust		Appelez-nous	-
6	B8367701		Window, Oven Light		Appelez-nous	-
7	R0130262		Antenna (stirrer)				$ 79.65
8	67007110		Screw		Appelez-nous	-
9	10966601		Gasket, Neoprene		Appelez-nous	-
10	A3030330		Gasket,per Ft		Appelez-nous	-
11	59001204		Panel, Partition		Appelez-nous	-
12	R0156984		Top Exhaust Duct-w/gasket		Appelez-nous	-
12	WP3388228		Screw-sm/hex   (Replaces: 12990525)				$ 6.26
13	A3030330		Gasket,per Ft		Appelez-nous	-
14	R0156985		Bottom Exhaust Duct-w/gasket		Appelez-nous	-
14	WP3388228		Screw-sm/hex   (Replaces: 12990525)				$ 6.26
15	A3030311		Gasket-per Inch		Appelez-nous	-
16	R0156987		Bottom Divider Duct-w/gasket		Appelez-nous	-
17	12990522		Screw-sm/hex		Appelez-nous	-
17	R0156986		Rear Divider Duct-w/gasket		Appelez-nous	-
18	A3030330		Gasket,per Ft		Appelez-nous	-
19	59002047		Screw-tf/hex Rohs		Appelez-nous	-
20	B5706704		Fan Blade				$ 8.23
21	59001482		Motor, Blower		Appelez-nous	-
22	12990522		Screw-sm/hex		Appelez-nous	-
22	59001483		Bracket,blower		Appelez-nous	-
23	13033801		Cord-power		Appelez-nous	-
24	M0370009		Relief- Strain		Appelez-nous	-
25	B5677203		Terminal Block		Appelez-nous	-
25	M0234117		Screw		Appelez-nous	-
26	M0216517		Screw		Appelez-nous	-
26	12552001		Scroll,blower				$ 13.02
27	A3030330		Gasket,per Ft		Appelez-nous	-
28	C3670809		Wheel, Blower				$ 33.54
29	10091101		Fuse Holder		Appelez-nous	-
30	M0805205		Fuse- 30a				$ 10.08
31	M0216517		Screw		Appelez-nous	-
31	59001496		Line Filter		Appelez-nous	-
