01 - Cover


02 - Cabinet And Component Parts


03 - Motor And Blower Parts


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts

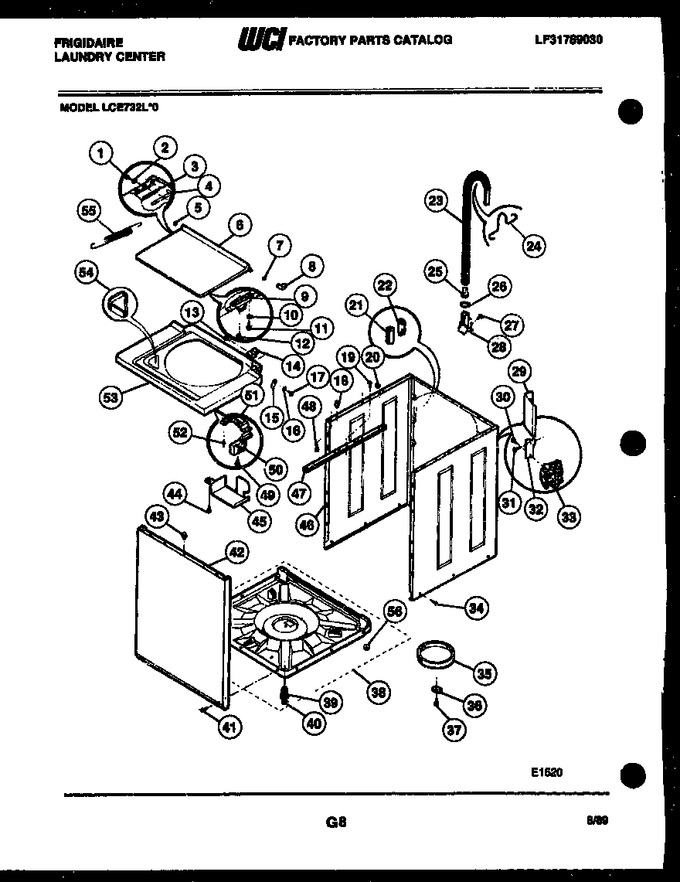

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204359		Screw (2)		Appelez-nous	-
2	F078259-000		Washer (2)		Appelez-nous	-
3	3204360		Gasket		Appelez-nous	-
4	5304489657		Hinge Bar   (Replaces: 3205250)				$ 82.93
5	3204362		Grommet-left		Appelez-nous	-
6	3204364		Lid-almond		Appelez-nous	-
7	3204365		Grommet-right		Appelez-nous	-
8	3204366		Cam		Appelez-nous	-
9	131390000		Lid Strike   (Replaces: 3204367)				$ 55.19
10	F078259-000		Washer (2)		Appelez-nous	-
11	3204368		Screw (2)				$ 13.01
12	134075500		Bumper (2)   (Replaces: 3204369)				$ 17.35
13	08006553		Screw		Appelez-nous	-
14	3204370		Block-hinge Support		Appelez-nous	-
15	3204371		Spring		Appelez-nous	-
16	3204372		Washer		Appelez-nous	-
17	F131686000		Screw		Appelez-nous	-
18	3204373		Locating Pin (2)				$ 4.99
19	3161239		Screw (2)		Appelez-nous	-
20	3204374		Slide Pin (2)				$ 78.67
21	08014903		Capacitor		Appelez-nous	-
22	3161252		Bracket-capacitor		Appelez-nous	-
23	3205414		Drain Hose		Appelez-nous	-
24	3204987		Retainer		Appelez-nous	-
25	3204375		Check Valve				$ 48.06
26	3161183		Clamp		Appelez-nous	-
27	08006553		Screw		Appelez-nous	-
28	3204376		Coupler		Appelez-nous	-
29	3204377		Shield-water Valve		Appelez-nous	-
30	3010202		Screw		Appelez-nous	-
31	3015671		Screw (2)		Appelez-nous	-
32	3204378		Bracket-water Valve		Appelez-nous	-
33	08015532		Water Valve		Appelez-nous	-
34	F066234-000		Screw (9)		Appelez-nous	-
35	F130789-000		Snubber Ring		Appelez-nous	-
36	3204380		Shipping Block				$ 12.29
37	3204381		Shipping Screw		Appelez-nous	-
38	3204382		Base Assembly		Appelez-nous	-
39	3937004		Levleing Leg & Pad (2)		Appelez-nous	-
40	3204383		Pad-leveling Leg (2)		Appelez-nous	-
41	3205406		Screw (2)		Appelez-nous	-
42	3204385		Front Panel-almond		Appelez-nous	-
43	3204373		Locating Pin				$ 4.99
44	3018964		Screw		Appelez-nous	-
45	3204386		Shield-lid Lock		Appelez-nous	-
46	3204388		Cabinet - Almond		Appelez-nous	-
47	3204389		Marriage Bracket (2)		Appelez-nous	-
48	08001578		Screw (2)		Appelez-nous	-
49	F132144-000		Screw (2)		Appelez-nous	-
50	3205646		Lid Lock		Appelez-nous	-
51	3204391		Bracket, Lid Lock		Appelez-nous	-
52	08002420		Rivet (3)		Appelez-nous	-
53	3204393		Top Panel-almond		Appelez-nous	-
54	3204394		Bleach Dispenser				$ 59.96
55	134890500		Spring-assist   (Replaces: 3205251)				$ 19.85
56	3204383		Pad-self Leveling Leg (2)		Appelez-nous	-
