View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Assy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

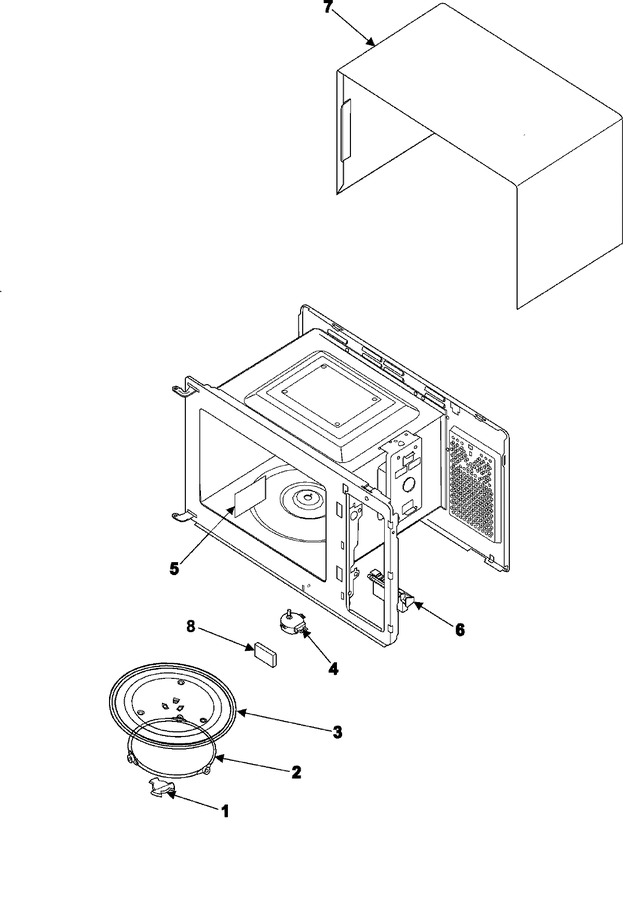

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE67-00121A | Coupler |
|
$ 3.64 | |||||
| 2 | DE92-90189V | Assy-guide Roller |
|
$ 40.98 | |||||
| 3 | DE74-20002C | Tray-cooking |
|
$ 66.71 | |||||
| 4 | 555555 | Motor-drive (Replaces: DE31-10154A) |
|
$ 151.94 | |||||
| 5 | DE71-60449A | Cover-mgt |
|
- | |||||
| 6 | DE66-90113A | Lever-door |
|
$ 17.58 | |||||
| 7 | DE64-00318B | Panel-outer |
|
- | |||||
| 8 | DE63-00061A | Cushion-hvt |
|
- |
