01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Control/latch Assy/base


04 - Supplemental Information

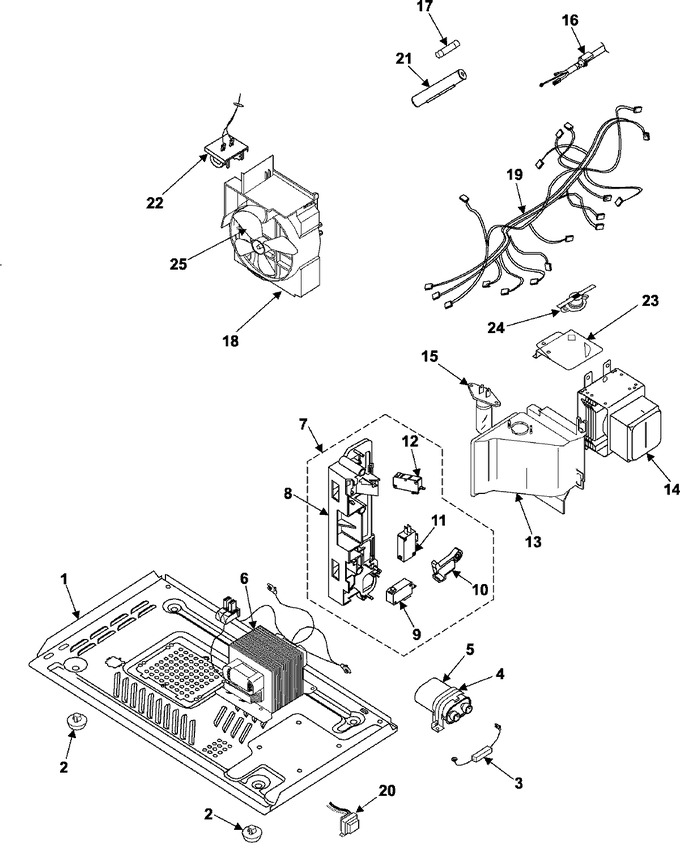

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE80-10002D		Base-plate		Appelez-nous	-
2	DE61-40066A		Foot				$ 17.58
3	555555		Diode-h.v   (Replaces: DE59-40001A)				$ 151.94
4	Y00000000		See Note Bracket, Capacitor Currently Unavailable		Appelez-nous	-
5	2501-001015		Capacitor		Appelez-nous	-
6	DE26-00021A		Trans-h.v				$ 137.15
7	DE96-00005F		Assy Body Latch		Appelez-nous	-
8	DE66-40001C		Latch-body		Appelez-nous	-
9	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
10	DE66-90114A		Lever-s/w		Appelez-nous	-
11	3405-001033		Switch-micro			Immediately	$ 17.58
12	3405-001055		Switch-micro				$ 17.58
13	DE71-60458A		Cover-air				$ 18.00
14	DE03-00010A		Magnetron		Appelez-nous	-
15	WP8183592		Lamp-incandescent   (Replaces: 4713-001102)				$ 41.09
16	DE39-00040E		Assy Power Cord		Appelez-nous	-
17	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
18	DE31-10155T		Motor-fan				$ 91.55
18	DE96-00174A		Assy-motor Fan		Appelez-nous	-
19	DE39-00256B		Wire Harness-a		Appelez-nous	-
20	DE26-00037A		Trans-l.v		Appelez-nous	-
21	DE47-40025A		Holder, Fuse		Appelez-nous	-
22	DE97-00277A		Assy-ezi Sensor		Appelez-nous	-
23	DE61-50574A		Bracket-tco		Appelez-nous	-
24	DE47-20173A		Thermostat				$ 21.43
25	DE31-90051A		Blade-fan				$ 6.95
