SELECT A DIAGRAM

02 - Cabinet And Component Parts


03 - Motor, Blower And Cabinet Parts


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts

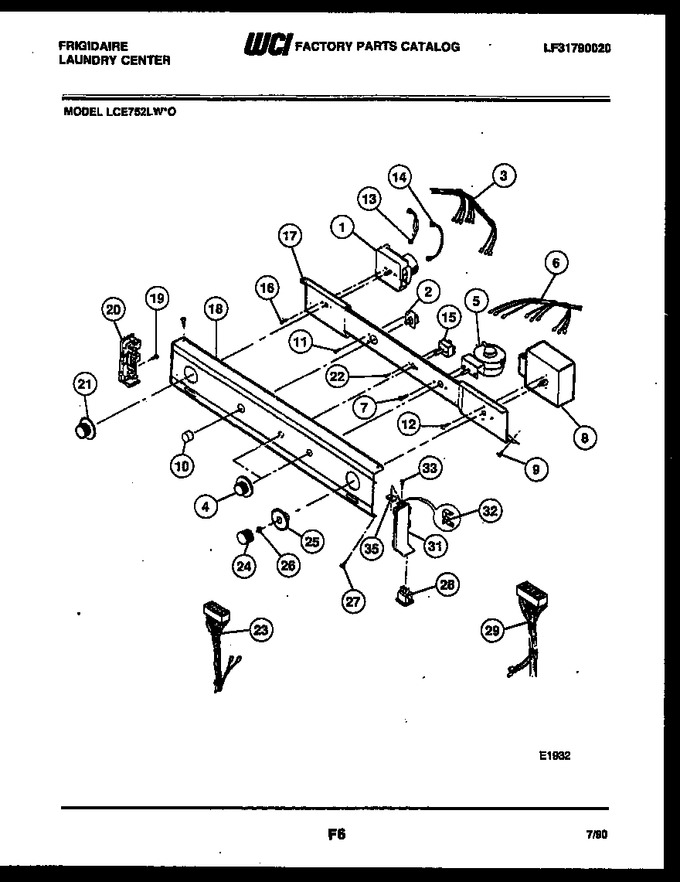

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201618		Dryer Timer		Appelez-nous	-
2	3205632		Start Switch		Appelez-nous	-
3	5303209139		Dryer Control Harness		Appelez-nous	-
4	3205634		Rotary Knob (2)				$ 38.85
5	3205635		Switch - Water Level		Appelez-nous	-
6	5303209141		Washer Control Harness		Appelez-nous	-
7	5303161233		Screw (2)		Appelez-nous	-
8	5303209142		Washer Timer		Appelez-nous	-
9	5303207399		Screw - Control Panel To Side Panels (2)		Appelez-nous	-
10	3205638		Push Button		Appelez-nous	-
11	08001544		Screw		Appelez-nous	-
12	3161188		Screw (2)		Appelez-nous	-
13	3205877		Resistor				$ 51.14
14	3205243		Resistor-power		Appelez-nous	-
15	5308014346		Temperature Switch		Appelez-nous	-
16	3161188		Screw (2)		Appelez-nous	-
17	3205639		Bracket-control Panel		Appelez-nous	-
18	5303209143		Control Panel		Appelez-nous	-
19	5303161233		Screw (4)		Appelez-nous	-
20	3204343		End Cap-lh		Appelez-nous	-
21	3205641		Dryer Knob Asmy.				$ 53.66
22	3161259		Screw (2)				$ 6.83
23	5303209144		Dryer Harness		Appelez-nous	-
24	3205643		Knob-washer		Appelez-nous	-
25	3205644		Indicator - Washer Timer				$ 43.42
26	3205248		Spacer-washer Timer Shaft				$ 13.02
27	3205253		Screw - End Cap To Panel (2)		Appelez-nous	-
29	5303209145		Washer Harness		Appelez-nous	-
31	3204353		End Cap-rh		Appelez-nous	-
32	3204357		Grounding Clip				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
