02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:

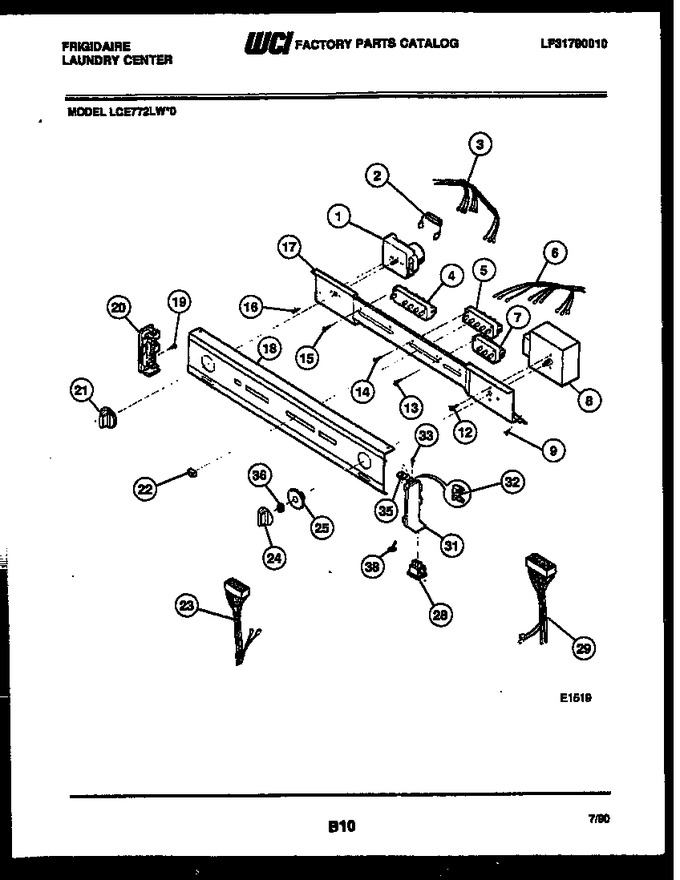

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204330 | Dryer Timer |
|
- | |||||
| 2 | 3205243 | Resistor |
|
- | |||||
| 3 | 3204331 | Dryer Control Harness |
|
- | |||||
| 4 | 3204332 | Temp. Switch - Dryer |
|
- | |||||
| 5 | 5303209109 | Temp. Switch - Washer |
|
- | |||||
| 6 | 5303209110 | Washer Control Harness |
|
- | |||||
| 7 | 3204335 | Switch - Water Level |
|
$ 139.97 | |||||
| 8 | 5303209111 | Washer - Timer |
|
- | |||||
| 9 | 5303207399 | Screw - Control Panel To Side Panels (2) |
|
- | |||||
| 13 | 3161188 | Screw (2) |
|
- | |||||
| 14 | 3161188 | Screw (2) |
|
- | |||||
| 15 | 3161188 | Screw (2) |
|
- | |||||
| 16 | 3161188 | Screw (2) |
|
- | |||||
| 17 | 5303209112 | Bracket - Control Panel |
|
- | |||||
| 18 | 5303209113 | Control Panel |
|
- | |||||
| 19 | 5303161233 | Screw (4) |
|
- | |||||
| 20 | 3204343 | End Cap-lh |
|
- | |||||
| 21 | 3205641 | Dryer Knob Asmy. |
|
$ 53.66 | |||||
| 22 | 5303209115 | Pushbutton - Square (5) |
|
- | |||||
| 23 | 3205246 | Dryer Harness |
|
- | |||||
| 24 | 3205643 | Knob-washer |
|
- | |||||
| 25 | 3205644 | Indicator - Washer Timer |
|
$ 43.42 | |||||
| 28 | 5303209123 | Switch - Tub Light |
|
- | |||||
| 29 | 5303209126 | Washer Harness |
|
- | |||||
| 31 | 3204353 | End Cap-rh |
|
- | |||||
| 32 | 3204357 | Grounding Clip |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw (4) |
|
- | |||||
| 35 | 5308014350 | Clip (4) |
|
- | |||||
| 36 | 3205248 | Spacer-timer-shaft |
|
$ 13.02 | |||||
| 38 | 3205253 | Screw (2) |
|
- | |||||
| 22A | 5303209118 | Pushbutton - Rounded (6) |
|
- | |||||
| 22B | 5303207416 | Pushbutton - Start |
|
- |
