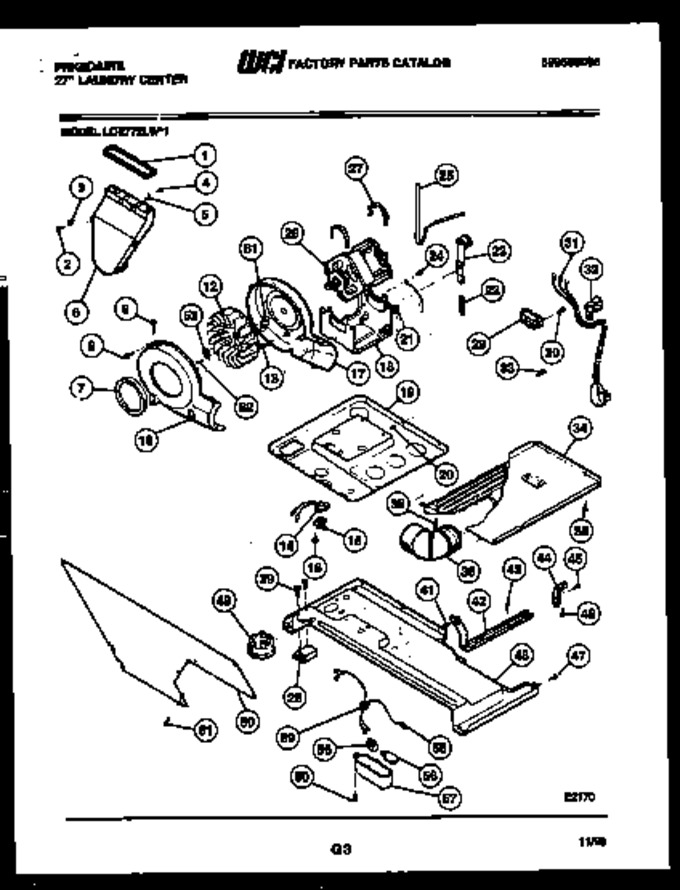

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204298 | Seal-air Duct To Front Panel |
|
$ 46.99 | |||||
| 2 | 3281066 | Screw (2) |
|
- | |||||
| 3 | 5308014350 | Clip (2) |
|
- | |||||
| 4 | 3281066 | Screw (2) |
|
- | |||||
| 5 | 5308014350 | Clip (2) |
|
- | |||||
| 6 | 5303208615 | Air-duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 9 | 5303207399 | Screw (2) |
|
- | |||||
| 10 | 3204301 | Front - Blower Housing |
|
- | |||||
| 12 | 5303937064 | Blower Wheel |
|
- | |||||
| 13 | 08011280 | Screw |
|
- | |||||
| 14 | 5303206879 | External Thermostat Heater |
|
- | |||||
| 15 | 3204307 | Control Thermostat |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw (2) |
|
- | |||||
| 17 | 3204309 | Rear-blower Housing |
|
- | |||||
| 18 | 3201239 | Motor-cradle |
|
- | |||||
| 19 | 3204311 | Upper Motor Cradle Pan |
|
- | |||||
| 20 | 5303207399 | Screw-pan To Shield & Side Panel (4) |
|
- | |||||
| 20 | 3204253 | Screw-pan To Rear Panel (3) |
|
- | |||||
| 21 | 3281077 | Screw-cradle To Pan |
|
- | |||||
| 22 | 3205241 | Idler Spring |
|
$ 75.83 | |||||
| 23 | 3205242 | Idler Arm Assy |
|
$ 205.60 | |||||
| 24 | 5303161233 | Ground Screw |
|
- | |||||
| 25 | 3204314 | Belt |
|
- | |||||
| 26 | 5303212870 | Block-support |
|
- | |||||
| 27 | 5303212834 | Clamp-motor (2) |
|
$ 3.78 | |||||
| 28 | 5303209662 | Dryer Motor |
|
$ 522.45 | |||||
| 29 | 134101400 | Terminal Block (Replaces: 5303208585) |
|
Immediately | $ 55.99 | ||||
| 30 | 5308015309 | Screw (2) |
|
- | |||||
| 31 | 5303017939 | Power Cord |
|
- | |||||
| 32 | 3204317 | Strain Relief |
|
- | |||||
| 33 | 3161275 | Ground Screw-rear Panel |
|
- | |||||
| 34 | 3204319 | Access Shield |
|
- | |||||
| 35 | 5303207399 | Screw (6) |
|
- | |||||
| 36 | 5303161233 | Screw |
|
- | |||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 5308006553 | Screw (4) |
|
- | |||||
| 41 | 5303207399 | Screw-brkt To Side Panels (4) |
|
- | |||||
| 42 | 3204324 | Interior Marriage Brackets (2) |
|
- | |||||
| 43 | 5303209104 | Screw - Bracket To Bracket (4) |
|
- | |||||
| 44 | 3204326 | External Bracket (2) |
|
$ 43.24 | |||||
| 45 | 08011280 | Screw |
|
- | |||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 5303207399 | Screw (6) |
|
- | |||||
| 48 | 5303212871 | Bottom Pan |
|
- | |||||
| 49 | 3204328 | Remote Pressure Switch |
|
- | |||||
| 50 | 3204329 | Safety Cover |
|
$ 40.16 | |||||
| 51 | 5303207399 | Screw (7) |
|
- | |||||
| 53 | 3205236 | Clamp-front |
|
- | |||||
| 55 | 5303212867 | Lamp Receptacle |
|
- | |||||
| 56 | 131843500 | Lamp (Replaces: 5303212868) |
|
$ 73.00 | |||||
| 57 | 5303209106 | Cover - Lamp |
|
- | |||||
| 58 | 5303269740 | Harness-tub Light |
|
- | |||||
| 59 | 5303209108 | Bushing |
|
- | |||||
| 60 | 5303161233 | Screw |
|
- | |||||
| 61 | 3205237 | Clamp-rear |
|
- | |||||
| 62 | 3205238 | Screw |
|
- | |||||
| *38242 | 5303209915 | Bushing-pan Upper |
|
- |
