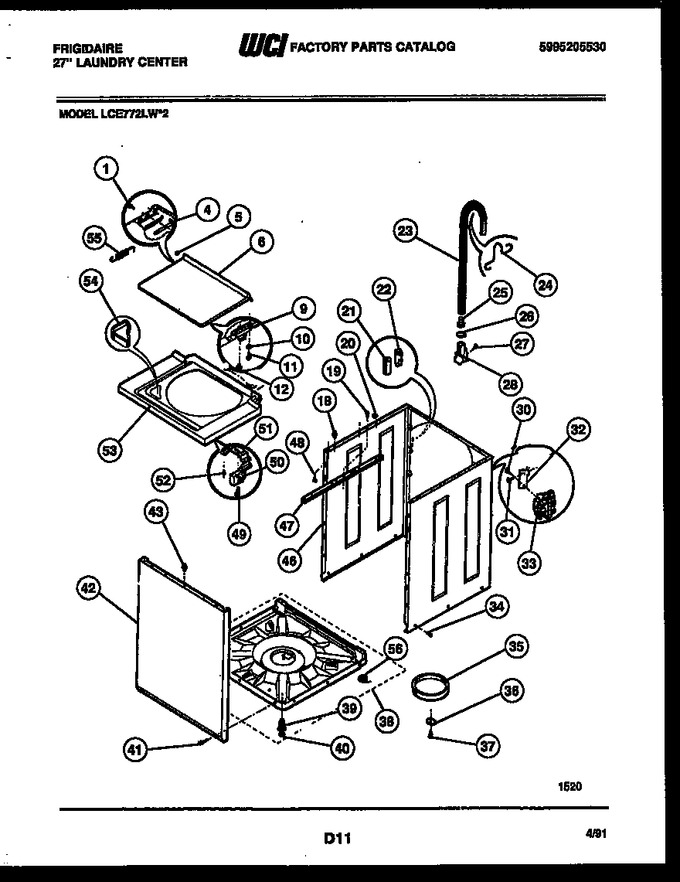

02 - Cabinet And Component Parts
03 - Motor, Blower And Body Assembly
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211089 | Screw (2) |
|
- | |||||
| 4 | 5304489657 | Hinge Bar (Replaces: 3205250) |
|
$ 82.93 | |||||
| 5 | 3204362 | Grommet-left |
|
- | |||||
| 6 | 5303212872 | Lid-white |
|
Immediately | $ 345.16 | ||||
| 9 | 131390000 | Lid Strike (Replaces: 3204367) |
|
$ 55.19 | |||||
| 10 | 5308002408 | Washer (2) |
|
- | |||||
| 11 | 3204368 | Screw (2) |
|
$ 13.01 | |||||
| 12 | 134075500 | Bumper (2) (Replaces: 3204369) |
|
$ 17.35 | |||||
| 18 | 3204373 | Locating Pin (2) |
|
$ 4.99 | |||||
| 19 | 5308057419 | Screw (2) |
|
- | |||||
| 20 | 3204374 | Slide Pin (2) |
|
$ 78.67 | |||||
| 21 | 5308014903 | Capacitor |
|
- | |||||
| 22 | 5303161252 | Bracket-capacitor |
|
- | |||||
| 23 | 3205414 | Drain Hose |
|
- | |||||
| 24 | 5303204987 | Retainer |
|
- | |||||
| 25 | 3204375 | Check Valve |
|
$ 48.06 | |||||
| 26 | 5364154013 | Clamp |
|
- | |||||
| 27 | 5308006553 | Screw |
|
- | |||||
| 28 | 3204376 | Coupler |
|
- | |||||
| 30 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 31 | 5303015671 | Screw (2) |
|
- | |||||
| 32 | 3204378 | Bracket-water Valve |
|
- | |||||
| 33 | 134190200 | Water Valve (Replaces: 5303207418) |
|
Immediately | $ 153.09 | ||||
| 34 | 5308001613 | Screw (9) |
|
- | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 37 | 3204381 | Shipping Screw |
|
- | |||||
| 38 | 3204382 | Base Assembly |
|
- | |||||
| 39 | 5303937004 | Leveling Leg & Pad (2) |
|
$ 112.04 | |||||
| 40 | 3204383 | Pad-leveling Leg (2) |
|
- | |||||
| 41 | 3205406 | Screw (2) |
|
- | |||||
| 42 | 5303209676 | Front Panel-white |
|
- | |||||
| 43 | 3204373 | Locating Pin |
|
$ 4.99 | |||||
| 46 | 3204387 | Cabinet (white) |
|
- | |||||
| 46 | 3204388 | Cabinet - Almond |
|
- | |||||
| 47 | 3204389 | Marriage Bracket (2) |
|
- | |||||
| 48 | 08001578 | Screw (2) |
|
- | |||||
| 49 | 5303206864 | Screw (2) |
|
- | |||||
| 50 | 3205646 | Lid Lock |
|
- | |||||
| 51 | 3204391 | Bracket, Lid Lock |
|
- | |||||
| 52 | 08002420 | Rivet (3) |
|
- | |||||
| 53 | 5303212874 | Top Panel-white |
|
- | |||||
| 54 | 3204394 | Bleach Dispenser |
|
$ 59.96 | |||||
| 55 | 134890500 | Spring-assist (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 56 | 5303207419 | Pad-self Leveling Leg (2) |
|
- |
