Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303211089 Screw Appelez-nous -
4 5304489657 Hinge Bar   (Replaces: 3205250) Special Order $ 82.93

5 3204362 Grommet Appelez-nous -
6 5303212872 Lid-white In-Stock Immediately $ 345.16

9 131390000 Lid Strike   (Replaces: 3204367) Special Order $ 55.19

11 3204368 Screw Special Order $ 13.01

12 134075500 Bumper   (Replaces: 3204369) Special Order $ 17.35

18 131346400 Pin Special Order $ 12.44

19 131168200 Screw In-Stock Immediately $ 14.18

20 3204374 Pin-slide Special Order $ 78.67

21 5308014903 Capacitor Appelez-nous -
22 5303161252 Bracket Appelez-nous -
23 131210200 Hose-drain Special Order $ 59.21

24 5303204987 Retainer Appelez-nous -
25 3204375 Check Valve Special Order $ 48.06

26 131127616 Clamp Appelez-nous -
27 131205100 Screw In-Stock Immediately $ 14.18

28 3204376 Coupler Appelez-nous -
30 131202300 Screw In-Stock Immediately $ 13.46

33 131258000 Valve-water Appelez-nous -
34 131205500 Screw (9) Special Order $ 13.46

35 5308002385 Snubber Ring Special Order $ 54.86

36 3204380 Shipping Block Special Order $ 12.29

37 131102900 Shipping Screw Appelez-nous -
38 5303300247 Base Appelez-nous -
39 5303272067 Leveling Leg & Pad (2) Appelez-nous -
40 5303004083 Pad-leg Appelez-nous -
41 131302800 Screw   (Replaces: 131258400) In-Stock Immediately $ 26.58

42 131104303 Panel - Front - White Special Order $ 309.70

43 131346401 Pin-locating In-Stock Immediately $ 16.63

46 131207100 Body-white Appelez-nous -
47 131106701 Bracket-marriage-rh Appelez-nous -
48 131168200 Screw In-Stock Immediately $ 14.18

49 131243800 Screw Special Order $ 10.46

50 3205646 Lid Lock Appelez-nous -
51 5303306138 Bracket Appelez-nous -
52 08002420 Rivet (3) Appelez-nous -
53 5303212874 Panel Top-white Appelez-nous -
54 3204394 Dispenser-bleach Special Order $ 59.96

55 134890500 Spring-assist   (Replaces: 5303212876) Special Order $ 19.85

56 131422200 Pad-self-level (2)   (Replaces: 5303293754) In-Stock Immediately $ 56.70

47A 131091001 Bracket-marriage-lh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

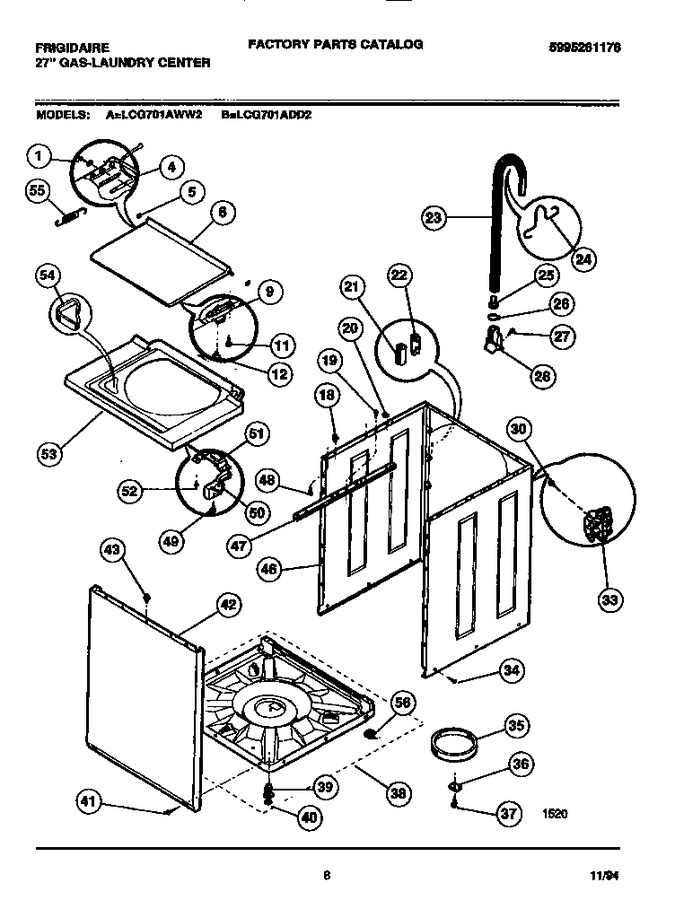

Diagram for LCG701AWW2
