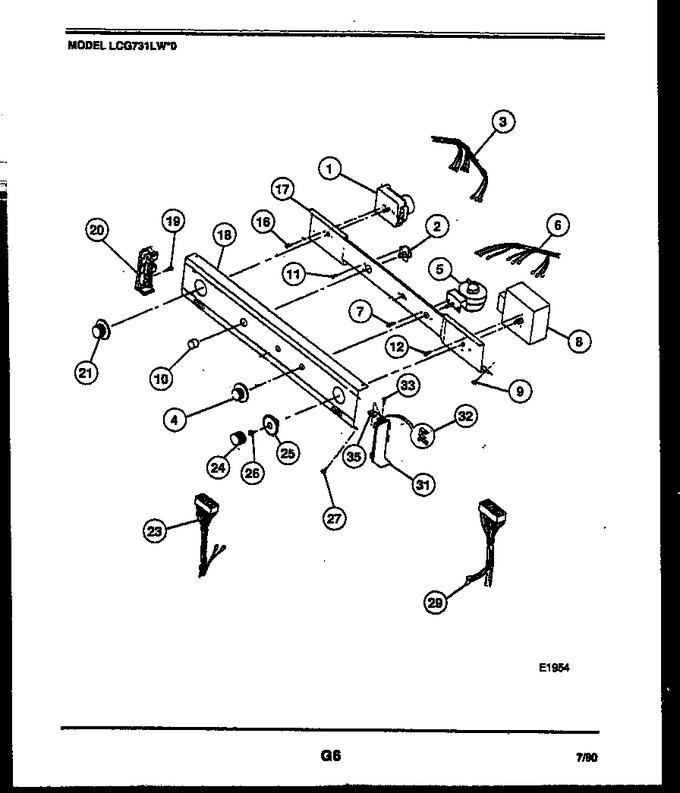

02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201614 | Timer - Dryer |
|
- | |||||
| 2 | 3205632 | Switch - Start |
|
- | |||||
| 3 | 5303211038 | Harness - Dryer Control |
|
- | |||||
| 4 | 3205634 | Knob - Rotary (1) |
|
$ 38.85 | |||||
| 5 | 5303209894 | Switch-water Level |
|
- | |||||
| 6 | 3205636 | Harness - Washer Control |
|
- | |||||
| 7 | 5303161233 | Screw |
|
- | |||||
| 8 | 3205637 | Timer - Washer |
|
- | |||||
| 9 | 5303207399 | Screw |
|
- | |||||
| 10 | 3205638 | Push Button |
|
- | |||||
| 11 | 08001544 | Screw |
|
- | |||||
| 12 | 3161188 | Screw (2) |
|
- | |||||
| 16 | 3161188 | Screw (2) |
|
- | |||||
| 17 | 3205639 | Bracket |
|
- | |||||
| 18 | 3205640 | Panel - Control |
|
- | |||||
| 19 | 5303161233 | Screw (4) |
|
- | |||||
| 20 | 5303209671 | End Cap-lh |
|
- | |||||
| 21 | 3205641 | Knob - Dryer Assy. |
|
$ 53.66 | |||||
| 23 | 5303211039 | Harness - Dryer |
|
- | |||||
| 24 | 3205643 | Knob-washer |
|
- | |||||
| 25 | 3205644 | Indicator |
|
$ 43.42 | |||||
| 26 | 3205248 | Spacer-shaft |
|
$ 13.02 | |||||
| 27 | 3205253 | Screw |
|
- | |||||
| 29 | 3205645 | Harness-washer |
|
- | |||||
| 31 | 5303210650 | End Cap-rh |
|
- | |||||
| 32 | 3204357 | Clip - Ground |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw |
|
- | |||||
| 35 | 5308014350 | Clip |
|
- |
