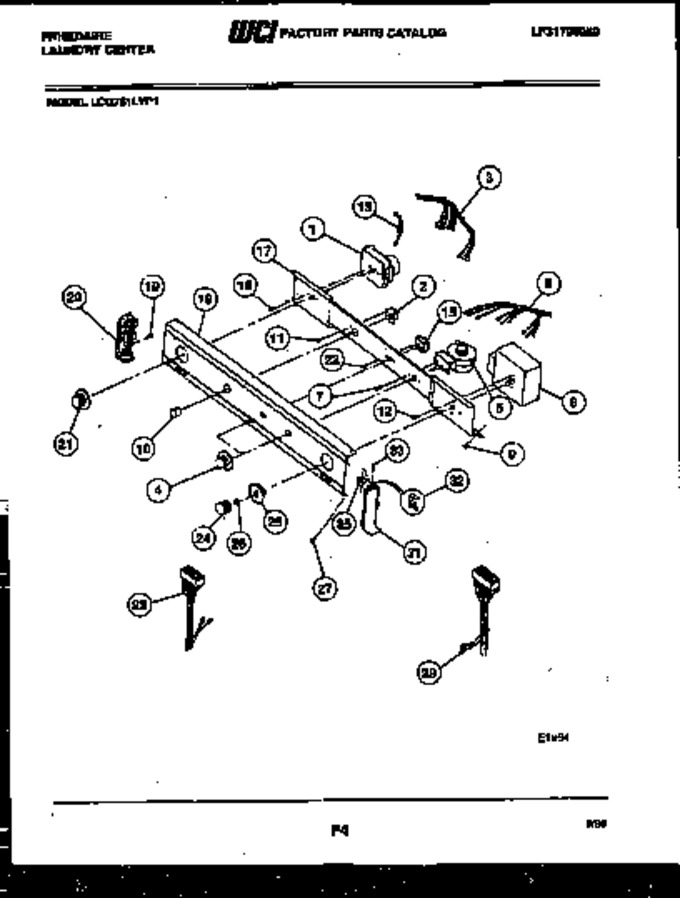

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201618		Timer-dryer		Appelez-nous	-
2	3205632		Start Switch		Appelez-nous	-
3	5303211052		Harness-dryer Control		Appelez-nous	-
4	3205634		Knob-rotary (2)				$ 38.85
5	5303209894		Switch-water Level		Appelez-nous	-
6	5303209141		Harness-washer Control		Appelez-nous	-
7	5303161233		Screw		Appelez-nous	-
8	5303209142		Timer-washer		Appelez-nous	-
9	5303207399		Screw		Appelez-nous	-
10	3205638		Push Button		Appelez-nous	-
11	08001544		Screw		Appelez-nous	-
12	3161188		Screw		Appelez-nous	-
13	3205877		Resistor				$ 51.14
15	5308014346		Switch-temperature		Appelez-nous	-
16	3161188		Screw		Appelez-nous	-
17	3204309		Rear-blower Housing		Appelez-nous	-
17	3205639		Bracket-controls		Appelez-nous	-
18	3201239		Motor-cradle		Appelez-nous	-
19	3204311		Upper Motor Cradle Pan		Appelez-nous	-
20	3204253		Screw - Pan To Rear (3)		Appelez-nous	-
21	3281077		Screw-cradle To Pan		Appelez-nous	-
22	3205241		Idler Spring				$ 75.83
23	3205242		Idler Arm				$ 205.60
24	5303161233		Screw-ground		Appelez-nous	-
25	3204314		Belt		Appelez-nous	-
27	3204315		Clamp-motor (2)		Appelez-nous	-
28	5303209662		Motor & Pulley (dryer)				$ 522.45
31	5303207402		Power Cord		Appelez-nous	-
32	5303209663		Strain Relief		Appelez-nous	-
81	08011280		Screw		Appelez-nous	-
20A	5303207399		Screw - Pan To Shield (4)		Appelez-nous	-
