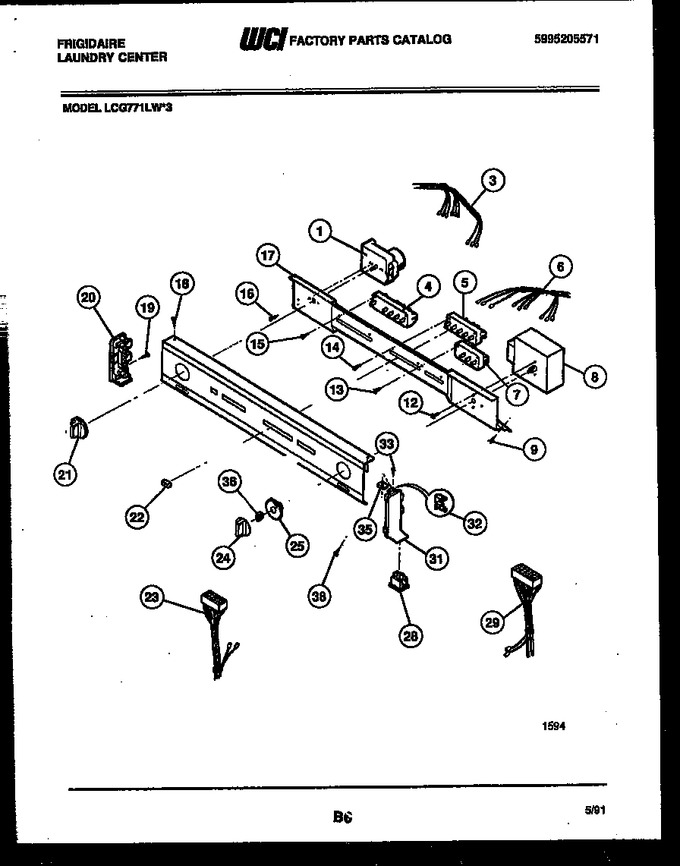

02 - Cabinet And Component Parts


03 - Motor, Blower And Cabinet Parts


04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269848		Timer-dryer		Appelez-nous	-
3	5303209667		Harness-dryer Control		Appelez-nous	-
4	3204332		Switch-temp Dryer		Appelez-nous	-
5	5303209109		Switch-temp Washer		Appelez-nous	-
6	5303209110		Harness-washer Control		Appelez-nous	-
7	3204335		Switch - Water Level				$ 139.97
8	5303209111		Timer-washer		Appelez-nous	-
9	5303207399		Screw		Appelez-nous	-
12	3161188		Screw (2)		Appelez-nous	-
13	3161188		Screw (2)		Appelez-nous	-
14	3161188		Screw (2)		Appelez-nous	-
15	3161188		Screw (2)		Appelez-nous	-
16	3161188		Screw (2)		Appelez-nous	-
17	5303209112		Bracket - Control Panel		Appelez-nous	-
18	5303209113		Panel-control		Appelez-nous	-
19	5303161233		Screw (4)		Appelez-nous	-
20	5303209671		End Cap-lh		Appelez-nous	-
21	5303269742		Knob-dryer		Appelez-nous	-
22	5303209115		Pushbutton (5) Square		Appelez-nous	-
23	5303271180		Harness-dryer		Appelez-nous	-
24	3205643		Knob-washer		Appelez-nous	-
25	3205644		Indicator - Washer Timer				$ 43.42
28	5303209123		Switch - Tub Light		Appelez-nous	-
29	5303209126		Harness-washer		Appelez-nous	-
31	5303209675		End Cap-rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	08010789		Screw (2)		Appelez-nous	-
35	5308014350		Clip (2)		Appelez-nous	-
36	3205248		Spacer-timer-shaft				$ 13.02
38	3205253		Screw (2)		Appelez-nous	-
*45638	5303210651		Spacer Pad-control Panel Bracket (2)		Appelez-nous	-
22A	5303209118		Pushbutton (6) Rounded		Appelez-nous	-
22B	5303207416		Pushbutton - Start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
