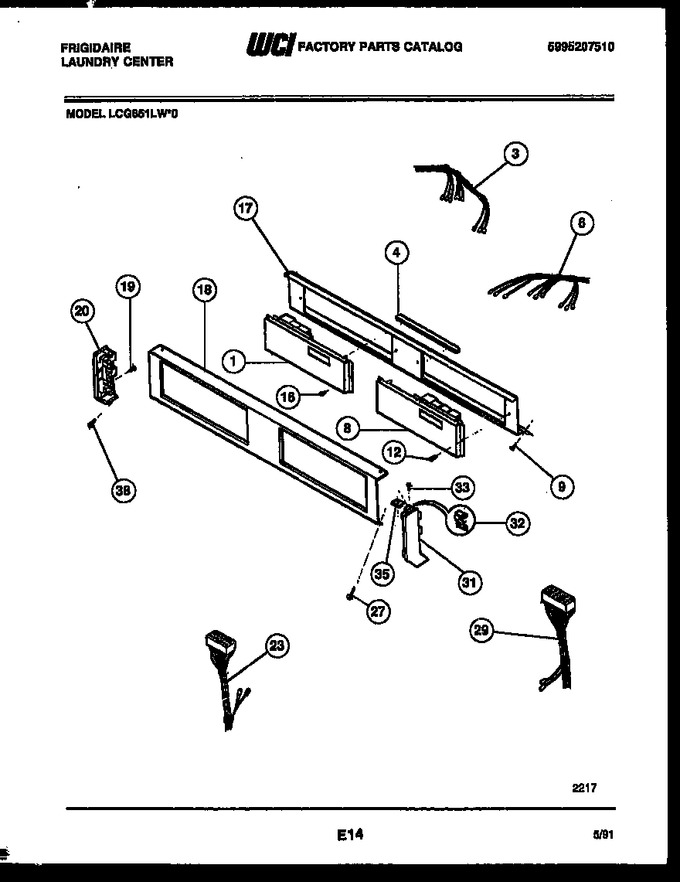

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303274075 | Control-dryer |
|
- | |||||
| 3 | 5303272160 | Harness-dryer Control |
|
- | |||||
| 4 | 5303272056 | Molding |
|
- | |||||
| 6 | 5303272057 | Harness-washer Control |
|
- | |||||
| 8 | 5303273990 | Control-washer |
|
- | |||||
| 9 | 5303207399 | Screw |
|
- | |||||
| 12 | 5303161233 | Screw |
|
- | |||||
| 16 | 5303161233 | Screw |
|
- | |||||
| 17 | 5303272061 | Bracket-control Panel |
|
- | |||||
| 18 | 5303273991 | Panel-control |
|
- | |||||
| 19 | 5303161233 | Screw (4) |
|
- | |||||
| 20 | 5303209671 | End Cap-lh |
|
- | |||||
| 23 | 5303274079 | Harness-dryer |
|
- | |||||
| 27 | 5303207399 | Screw |
|
- | |||||
| 29 | 5303272064 | Harness-washer |
|
- | |||||
| 31 | 5303210650 | End Cap-rh |
|
- | |||||
| 32 | 3204357 | Clip-grounding |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw (4) |
|
- | |||||
| 35 | 5308014350 | Clip (4) |
|
- | |||||
| 38 | 3205253 | Screw |
|
- |
