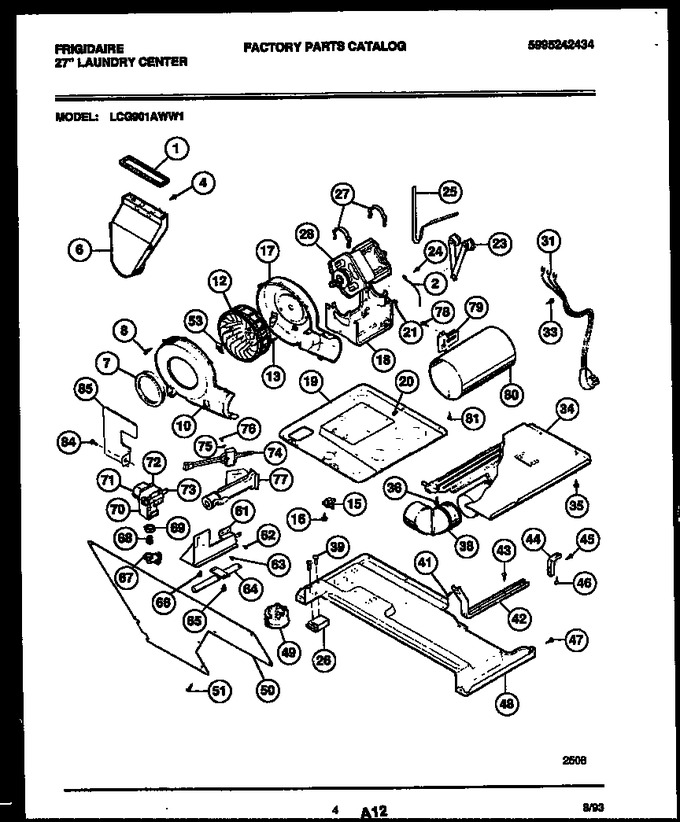

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131151200 | Seal-air Duct |
|
$ 44.45 | |||||
| 2 | 131062205 | Jumper Wire |
|
- | |||||
| 4 | 131088600 | Fastener (2) |
|
- | |||||
| 6 | 131087900 | Air Duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 10 | 5303271178 | Front-blower Housing |
|
- | |||||
| 12 | 131476300 | Blower Wheel (Replaces: 5303212513) |
|
Immediately | $ 47.00 | ||||
| 13 | 08011280 | Screw |
|
- | |||||
| 15 | 131073400 | Control Thermostat |
|
- | |||||
| 16 | 3204308 | Screw |
|
- | |||||
| 17 | 5303271179 | Rear-blower Housing |
|
- | |||||
| 18 | 131004901 | Motor Cradle |
|
- | |||||
| 19 | 3204311 | Upper Motor Cradle Pan |
|
- | |||||
| 20 | 131168200 | Screw-pan To Rear (3) |
|
Immediately | $ 14.18 | ||||
| 21 | 3281077 | Screw-cradle To Pan |
|
- | |||||
| 23 | 131131501 | Idler Arm |
|
- | |||||
| 24 | 131168200 | Screw Ground |
|
Immediately | $ 14.18 | ||||
| 25 | 134503600 | Belt (Replaces: 5303283471) |
|
Immediately | $ 18.79 | ||||
| 26 | 5303212870 | Block-support |
|
- | |||||
| 27 | 5303212834 | Clamp-motor (2) |
|
$ 3.78 | |||||
| 28 | 131198500 | Motor & Pulley (dryer) |
|
- | |||||
| 31 | 5303207402 | Power Cord |
|
- | |||||
| 33 | 3161275 | Screw - Ground |
|
- | |||||
| 34 | 131112011 | Shield-access |
|
- | |||||
| 35 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 36 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 5308006553 | Screw (4) |
|
- | |||||
| 41 | 5303207399 | Screw (4) |
|
- | |||||
| 42 | 3204324 | Bracket (2) |
|
- | |||||
| 43 | 3204325 | Screw (4) |
|
- | |||||
| 44 | 3204326 | Bracket-external (2) |
|
$ 43.24 | |||||
| 45 | 08011280 | Screw |
|
- | |||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 08011280 | Screw |
|
- | |||||
| 48 | 5303212871 | Pan-bottom |
|
- | |||||
| 49 | 5303293375 | Switch-pressure |
|
$ 144.22 | |||||
| 50 | 3204329 | Safety Cover |
|
$ 40.16 | |||||
| 51 | 5303207399 | Screw (6) |
|
- | |||||
| 53 | 5304488479 | Clamp (Replaces: 3204303) |
|
Immediately | $ 32.09 | ||||
| 61 | 5303207404 | Bracket-valve |
|
- | |||||
| 62 | 5303281132 | Screw (2) |
|
- | |||||
| 63 | 5303281132 | Screw (3) |
|
- | |||||
| 64 | 5303207405 | Pipe |
|
- | |||||
| 65 | 08011280 | Screw |
|
- | |||||
| 66 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 67 | 5303207407 | Shut-off Valve |
|
- | |||||
| 68 | 5362791200 | Tail Piece |
|
$ 52.98 | |||||
| 69 | 08015194 | Union Nut |
|
- | |||||
| 70 | 5303207409 | Valve-gas (Replaces: 131180700) |
|
$ 433.76 | |||||
| 71 | 5300622602 | Coil-secondary |
|
- | |||||
| 72 | 5308015680 | Coil-booster |
|
- | |||||
| 73 | 5303211036 | Orifice-natural Gas |
|
- | |||||
| 74 | 5303937186 | Ignitor (Replaces: 5303281151) |
|
$ 80.61 | |||||
| 75 | 3201209 | Washer |
|
- | |||||
| 76 | 5303281150 | Screw |
|
- | |||||
| 77 | 5303207412 | Burner Assembly |
|
- | |||||
| 78 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 79 | 131196900 | Sensor |
|
- | |||||
| 80 | 5303207413 | Burner Tube |
|
- | |||||
| 81 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 84 | 3281134 | Screw |
|
- | |||||
| 85 | 5303212889 | Shield-heat |
|
- | |||||
| *82247 | 5303937054 | Conversion Kit-l.p. To Natural |
|
$ 94.24 | |||||
| *82247 | 5303272164 | Receptacle |
|
- | |||||
| *82247 | PCK3100 | Conversion Kit-natural To L.p. (Replaces: 5303937053) |
|
$ 60.25 | |||||
| 20A | 5303207399 | Screw - Pan To Shield (4) |
|
- |
