02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts

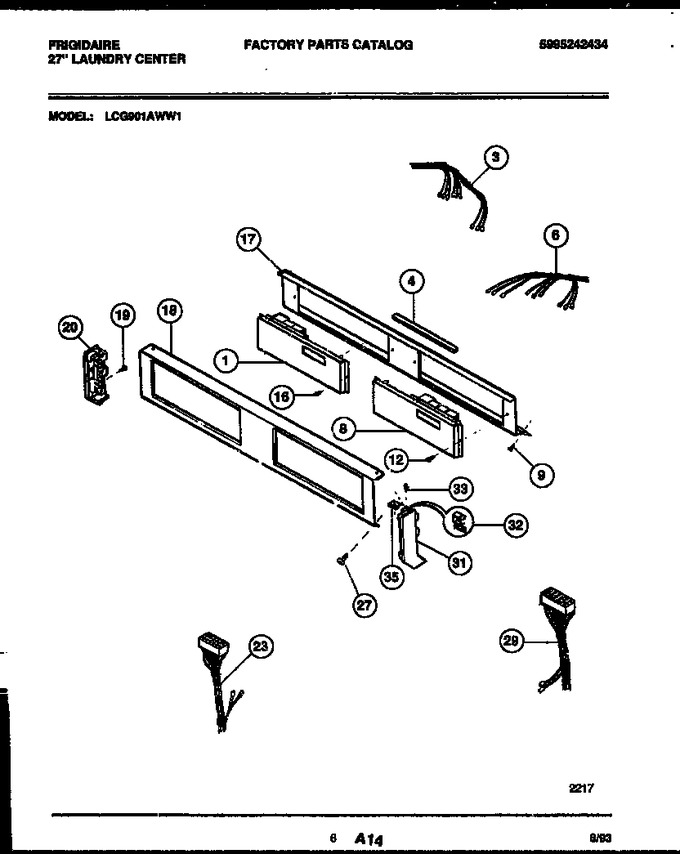

04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131182020 | Control-dryer-white |
|
- | |||||
| 3 | 131189200 | Harness-dryer Control |
|
- | |||||
| 4 | 5303272056 | Molding |
|
- | |||||
| 6 | 5303272057 | Harness-washer Control |
|
- | |||||
| 8 | 131186200 | Control-washer-white |
|
- | |||||
| 9 | 3205253 | Screw |
|
- | |||||
| 12 | 131168200 | Screw-control |
|
Immediately | $ 14.18 | ||||
| 16 | 131168200 | Screw-control |
|
Immediately | $ 14.18 | ||||
| 17 | 5303272061 | Bracket-controls |
|
- | |||||
| 18 | 131135800 | Panel-control-white |
|
- | |||||
| 19 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 20 | 5303211162 | Endcap-lh-white |
|
- | |||||
| 23 | 131189100 | Harness-dryer |
|
- | |||||
| 27 | 131168200 | Screw (2) |
|
Immediately | $ 14.18 | ||||
| 29 | 131162900 | Harness-washer |
|
- | |||||
| 31 | 5303211167 | End Cap-rh-white |
|
- | |||||
| 32 | 3204357 | Clip-grounding |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw (4) |
|
- | |||||
| 35 | 5308014350 | Clip (4) |
|
- |
