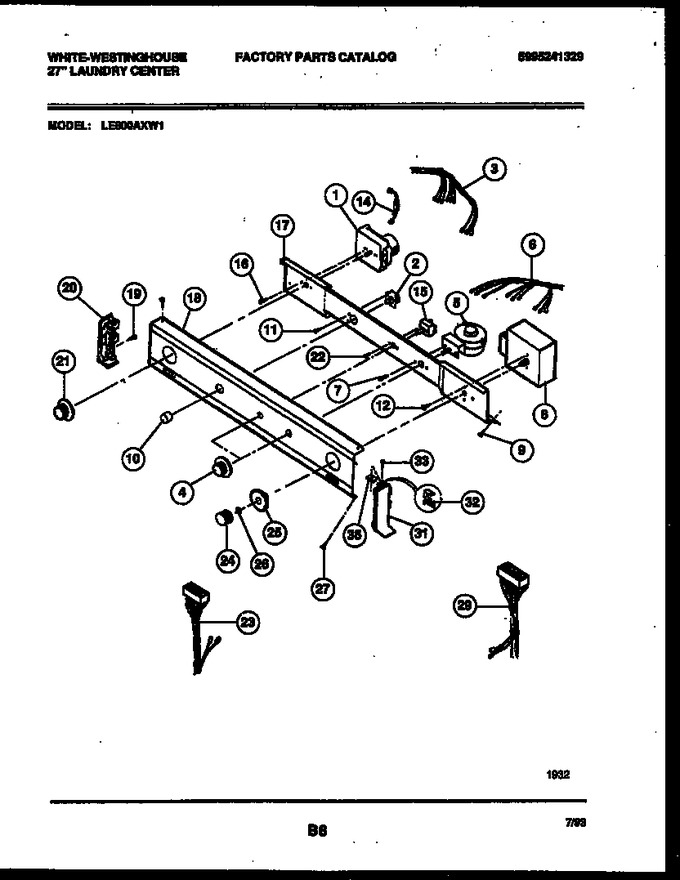

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269741		Timer-dryer		Appelez-nous	-
2	5303209890		Switch-start		Appelez-nous	-
3	5303270952		Harness-dryer Control		Appelez-nous	-
4	131858004		Knob-rotary 3)   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303937062		Switch - Water Level		Appelez-nous	-
6	5303270939		Harness-washer Control		Appelez-nous	-
7	5303161233		Screw		Appelez-nous	-
8	5303271775		Timer-washer				$ 472.50
9	5303207399		Screw		Appelez-nous	-
10	3205632		Push Button		Appelez-nous	-
11	08001544		Screw		Appelez-nous	-
12	3161188		Screw (2)		Appelez-nous	-
14	3205243		Resistor-power		Appelez-nous	-
15	5308008463		Switch-temperature				$ 84.39
16	3161188		Screw (2)		Appelez-nous	-
17	131112102		Bracket-controls		Appelez-nous	-
18	5303270940		Panel-control		Appelez-nous	-
19	5303161233		Screw (4)		Appelez-nous	-
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Knob-dryer   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw				$ 6.83
23	5303270953		Harness-dryer		Appelez-nous	-
24	5303210341		Knob-washer		Appelez-nous	-
25	5303209901		Indicator-timer		Appelez-nous	-
26	3205248		Spacer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131200500		Harness-washer		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Clip - Ground				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
*77015	3161259		Screw-switch Temp				$ 6.83
*77015	5303210651		Spacer Pad (2)		Appelez-nous	-
*77015	5303270950		Switch Trmp-dryer		Appelez-nous	-
