02 - Cabinet And Component Parts


03 - Motor, Blower And Cabinet Parts

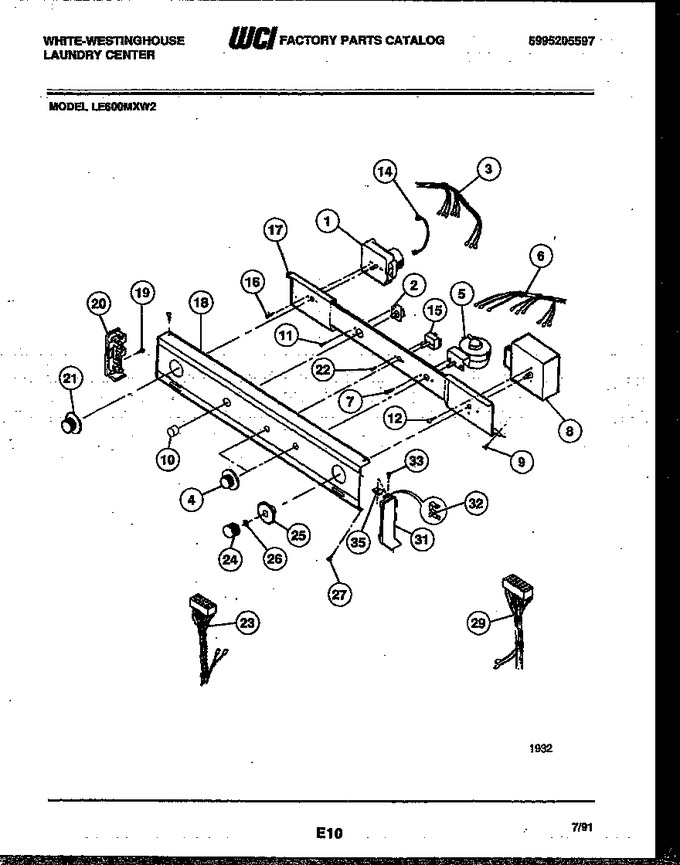

04 - Console And Control Parts


05 - Cabinet Parts


06 - Tub Detail


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303269741		Dryer Timer		Appelez-nous	-
2	5303209890		Start-switch		Appelez-nous	-
3	5303270952		Dryer Control Harness		Appelez-nous	-
4	131858004		Rotary Knob (3)   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303937062		Switch - Water Level		Appelez-nous	-
6	5303270939		Washer Control Harness		Appelez-nous	-
7	5303161233		Screw (2)		Appelez-nous	-
8	5303209142		Washer Timer		Appelez-nous	-
9	5303207399		Screw - Control Panel To Side Panels (2)		Appelez-nous	-
10	3205632		Push Button		Appelez-nous	-
11	08001544		Screw		Appelez-nous	-
12	3161188		Screw (2)		Appelez-nous	-
14	3205243		Resistor-power		Appelez-nous	-
15	5308008463		Temperature Switch				$ 84.39
16	3161188		Screw (2)		Appelez-nous	-
17	3205639		Bracket-control Panel		Appelez-nous	-
18	5303270940		Control Panel		Appelez-nous	-
19	5303161233		Screw (4)		Appelez-nous	-
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Dryer Knob Assy   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw (2)				$ 6.83
23	5303270953		Dryer Harness		Appelez-nous	-
24	5303210341		Knob-washer		Appelez-nous	-
25	5303209901		Indicator-washer Timer		Appelez-nous	-
26	3205248		Spacer-washer Timer Shaft				$ 13.02
27	3205253		Screw - End Cap To Panel (2)		Appelez-nous	-
29	5303209145		Washer Harness		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Grounding Clip				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
*48940	3161259		Screw-switch Temp				$ 6.83
*48940	5303210651		Spacer Pad (2)		Appelez-nous	-
*48940	5303270950		Switch Temperature-dryer		Appelez-nous	-
