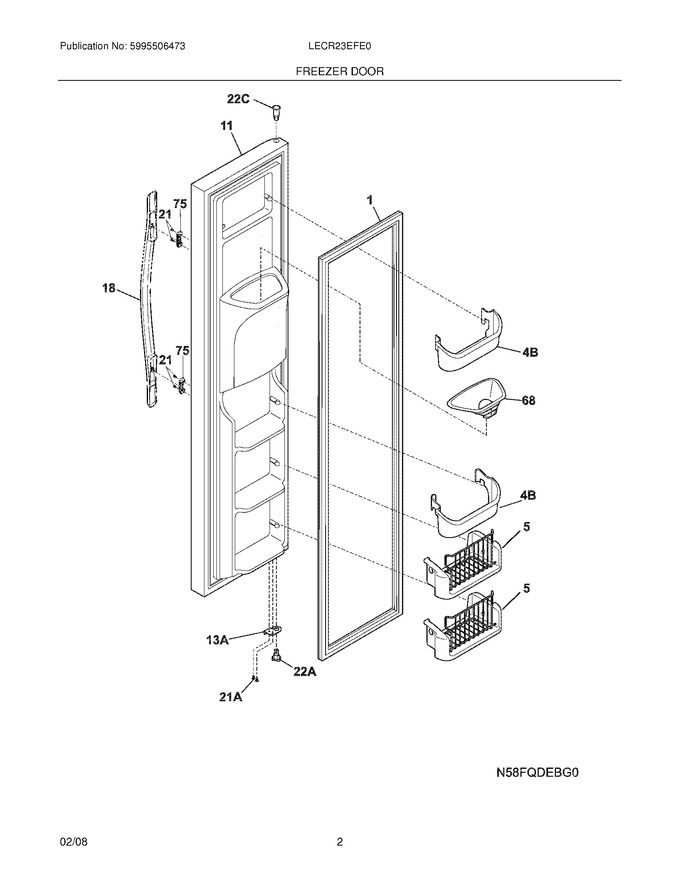

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241510202		Gasket-frzr Door,white ,magnetic				$ 286.53
5	241545001		Bin-tilt Out,tilt-out				$ 213.10
11	241615149		Door-frzr,stainless ,complete Assy		Appelez-nous	-
18	241706501		Handle-door,plastic ,silver Metallic		Appelez-nous	-
21	241696001		Screw,ab Cr Pan ,no.8-18 X 1/2		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
75	241696101		Clip-handle,(2)		Appelez-nous	-
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4B	241511602		Bin-door,pseudo ,frzr   (Replaces: 241511606)				$ 52.72
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240552102		Harness-wiring,door				$ 77.60
NI	5303918256		Dispenser Heater Kit				$ 474.16
