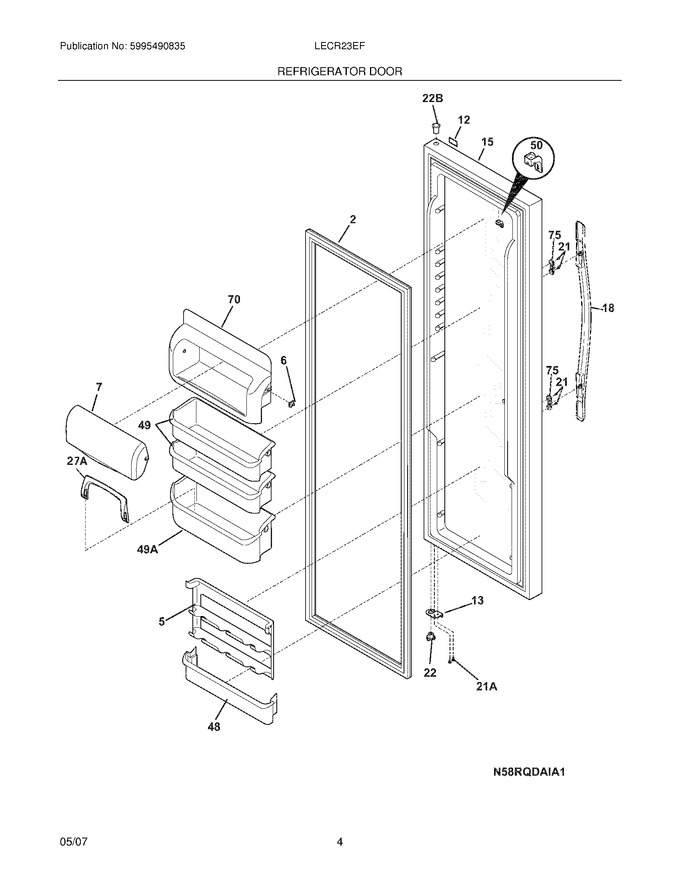

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515602		Door-dairy		Appelez-nous	-
12	241707001		Nameplate,element Series		Appelez-nous	-
13	240581905		Door Stop,black ,ref				$ 60.25
15	241629322		Door-refr,stainless ,complete Assy		Appelez-nous	-
18	241706501		Handle-door,plastic ,silver Metallic		Appelez-nous	-
21	241696001		Screw,ab Cr Pan ,no.8-18 X 1/2		Appelez-nous	-
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
48	241511704		Bin-door,ref		Appelez-nous	-
49	240430324		Bin-door,2-liter		Appelez-nous	-
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
75	241696101		Clip-handle,(2)		Appelez-nous	-
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
27A	240396102		Retainer,tall Bottle				$ 19.13
49A	240430323		Bin-door,gallon		Appelez-nous	-
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
