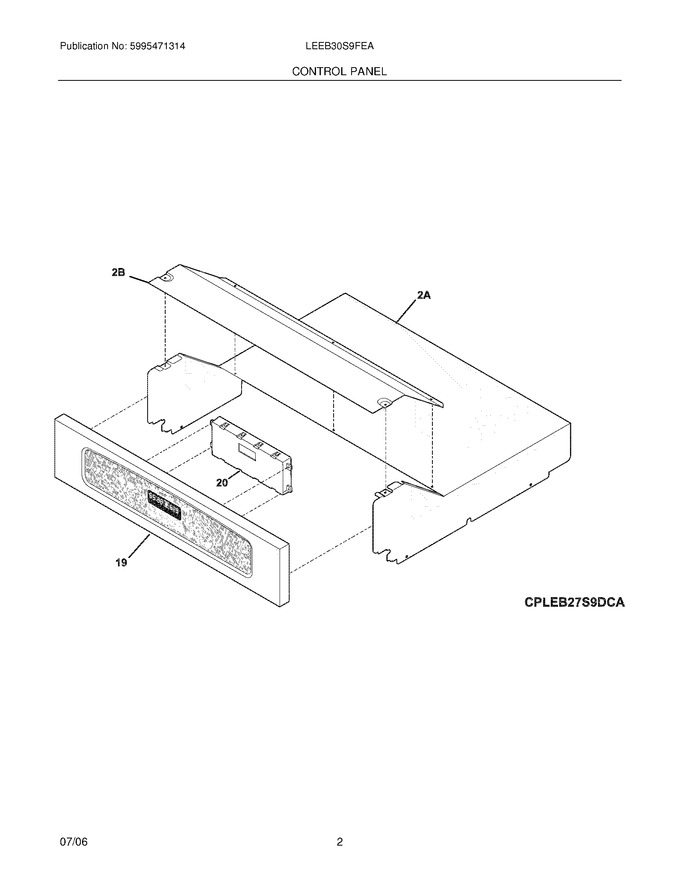

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318271540		Control Panel Assembly,steel/glass ,silver/black,w/touch Pad				$ 733.95
2A	318257300		Shield,oven Top				$ 89.36
2B	318260100		Cover,box				$ 44.42
F20	316418724		Clock/timer,electronic ,es510w2				$ 488.62
NI	5303311306		Screw,8-18 X 0.375 ,(3)		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
