SELECT A DIAGRAM

01 - Cover

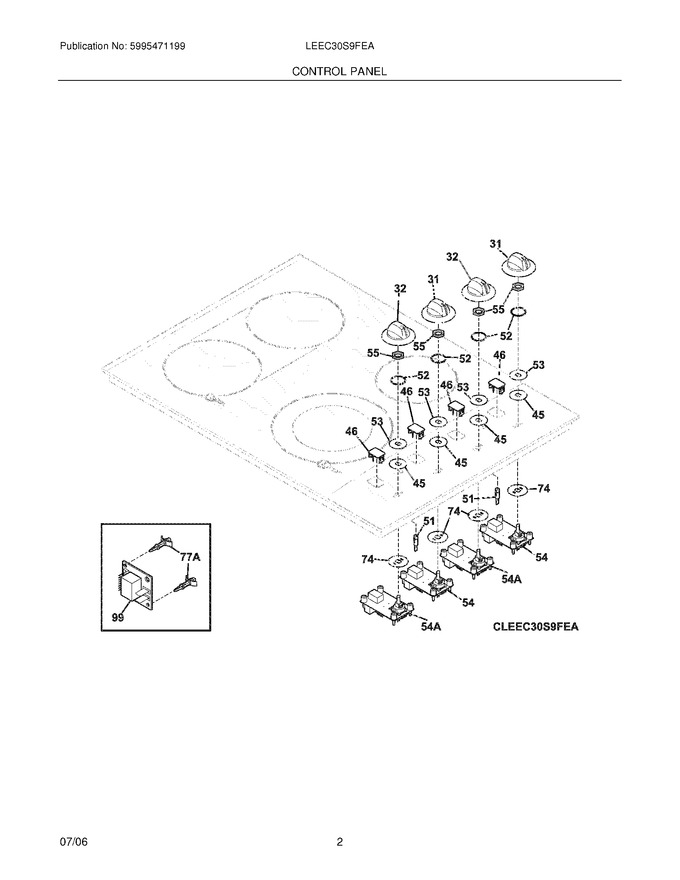

03 - Controls


05 - Maintop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	316460100		Knob,single Cntl ,silver Mist ,(2)		Appelez-nous	-
32	316460102		Knob,dual Cntl ,silver Mist ,(2)		Appelez-nous	-
45	318146012		Bushing,switch				$ 15.60
46	318319001		Lens,indicator Light ,green				$ 48.57
52	318337100		Gasket,o`ring				$ 14.41
53	318086003		Flat Washer,stainless		Appelez-nous	-
55	316247700		Nut,probe Mtg				$ 18.20
74	318146011		Bushing,switch		Appelez-nous	-
77A	316114100		Spacer,(2)				$ 60.96
F51	318337201		Light,indicator ,red ,(2)				$ 55.39
F54	316443400		Control,electronic ,single Element ,(1)				$ 348.03
F54A	316443401		Control,electronic ,dual Element ,(4) ,w/potentiometer			Immediately	$ 334.18
F99	316435703		Board,power Supply			Immediately	$ 394.48
NI	318083039		Harness,wiring ,to Transformer ,interface		Appelez-nous	-
NI	318083041		Harness,wiring ,to Controls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
