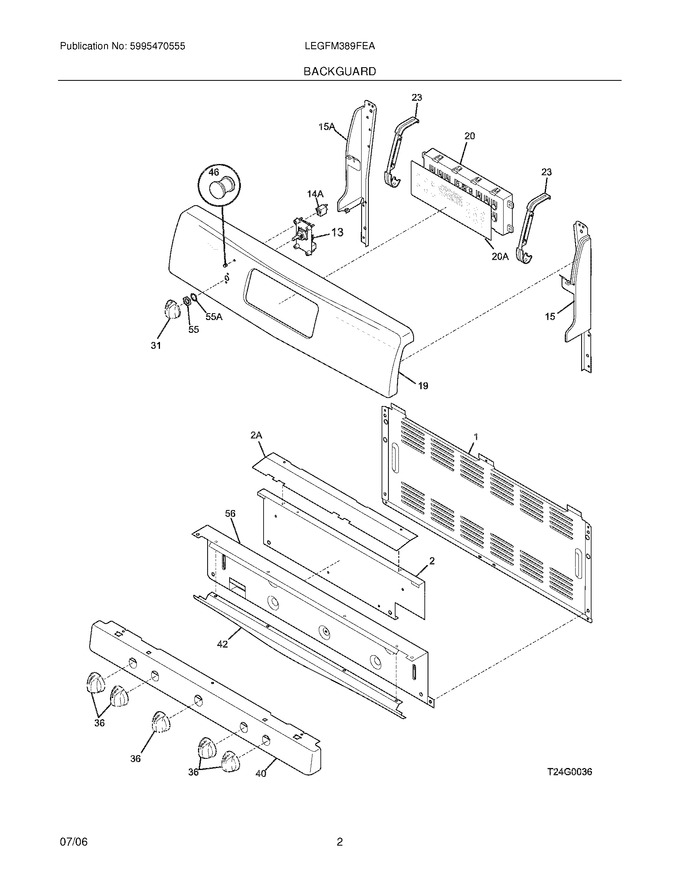

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316051600		Shield,backguard ,inner		Appelez-nous	-
13	316414406		Control,bake ,mini Oven   (Replaces: 316414405)				$ 206.61
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316436244		Panel,control ,silver Mist		Appelez-nous	-
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
31	316454601		Knob,control ,silver Mist ,(5)		Appelez-nous	-
36	316454700		Knob,top Valve ,silver Mist ,(5)		Appelez-nous	-
40	316447332		Panel,manifold ,silver Mist		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
55	316247700		Nut,probe Mtg				$ 18.20
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419703		Overlay,clock ,silver Mist ,w/mini Oven		Appelez-nous	-
2A	316235100		Shield-top Inner		Appelez-nous	-
55A	316247800		Washer-lock,control Mtg				$ 18.20
F20	316418706		Clock/timer,electronic ,es510				$ 307.39
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316416921		Harness,mini Oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
