Diagram for 02 - Splasher Control
02 - Splasher Control

Diagram for 03 - Cooktop Parts
03 - Cooktop Parts

Diagram for 04 - Lower Oven Door Parts
04 - Lower Oven Door Parts

Diagram for 05 - Broiler Drawer Parts
05 - Broiler Drawer Parts

Diagram for 06 - Control Panel
06 - Control Panel

Diagram for 07 - Upper Oven Door Parts
07 - Upper Oven Door Parts

Diagram for 08 - Burner, Manifold And Gas Control
08 - Burner, Manifold And Gas Control

Diagram for 09 - Lower Body Parts
09 - Lower Body Parts

Diagram for 10 - Upper Body Parts
10 - Upper Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3204441 Back-o/u Wall Appelez-nous -
2 5303208988 Trim-vent Appelez-nous -
3 3200527 Support-o/u-lh Appelez-nous -
4 513T084F02 Panel-filler Appelez-nous -
5 5303208987 Pnl Splashr-upper Appelez-nous -
6 241T003P01 Fstnr Cable Clamp Appelez-nous -
7 241T017P154 Fstnr-purse Lock (1) Appelez-nous -
8 5303208662 Switch-rocker Appelez-nous -
3A 3200526 Support-o/u-rh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

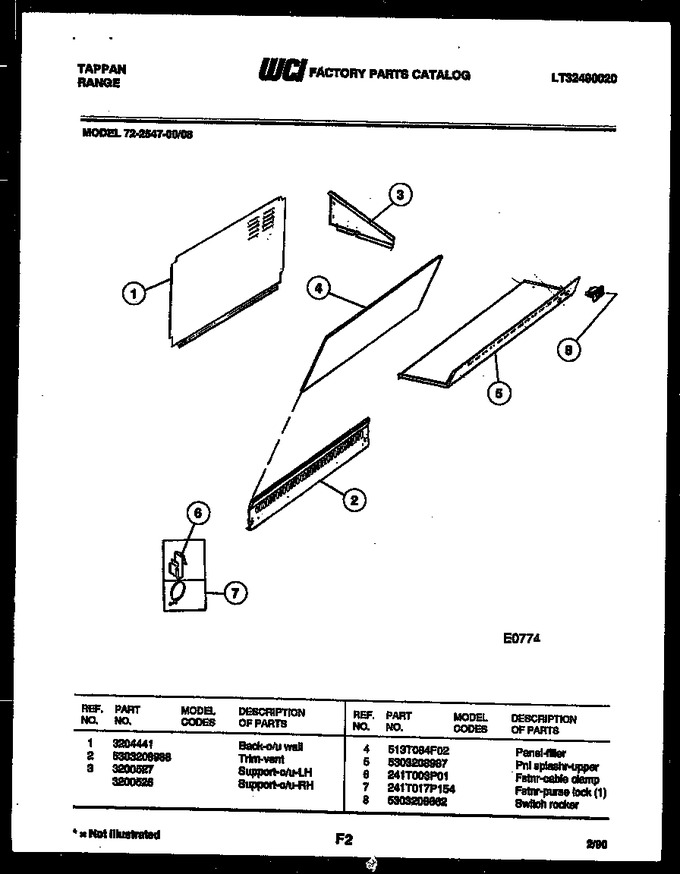

Diagram for 72-2547-66-08
