SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum

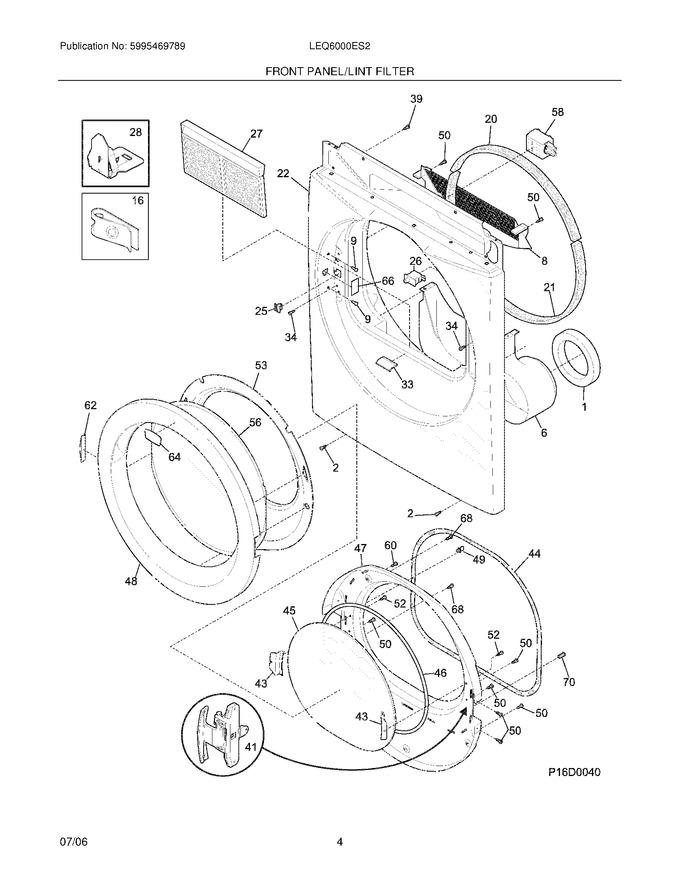

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal,air Duct			Immediately	$ 9.22
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
6	134382900		Duct,air				$ 183.12
9	131633200		Plug,white				$ 15.90
16	134440100		Clip,u-nut				$ 7.30
20	134440200		Seal,felt ,upper			Immediately	$ 41.24
21	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
22	134684310		Panel,front ,white ,w/lamp Hole				$ 245.12
25	131658800		Latch,door ,lower   (Replaces: 134548000)			Immediately	$ 68.38
27	131450300		Trap,lint Blade Assy			Immediately	$ 30.47
28	134440000		Clip,guide		Appelez-nous	-
33	134737200		Guide,door				$ 52.61
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
41	137105100		Hinge,door   (Replaces: 134680900)				$ 184.45
43	134559300		Bracket,door Glass				$ 11.34
44	137553402		Gasket,door Seal   (Replaces: 134720900)				$ 87.12
45	134611800		Glass,inner Door		Appelez-nous	-
46	134580300		Gasket,door Glass ,inner				$ 66.51
47	137554621		Panel,inner Door ,white   (Replaces: 134683910)				$ 197.88
48	137577600		Panel,outer Door ,white   (Replaces: 134558400)				$ 185.80
49	5303207102		Door Strike   (Replaces: 134548100)			Immediately	$ 19.85
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
52	131243700		Screw,indt Pan Head ,8-18ab X 0.375   (Replaces: 134529600)				$ 3.36
53	134558600		Ring,door Transition		Appelez-nous	-
56	137577700		Glass,outer Door Lens   (Replaces: 134550600)				$ 224.84
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 14.89
62	134680700		Plug,hinge Cutout ,white				$ 7.14
64	134601600		Nameplate,affinity		Appelez-nous	-
66	137577200		T-plug,hinge Hole   (Replaces: 134680800)				$ 5.79
68	134742000		Plug,hinge Hole ,white				$ 10.85
70	134417500		Plug,rectangular ,white				$ 16.22
F26	134813601		Switch,door ,with Drum Light   (Replaces: 131843101)			Immediately	$ 33.09
F58	131843500		Lamp Assy,drum Light ,w/mtg Bracket				$ 73.00
F8	131845802		Cover,lint Housing ,w/moist Sensor				$ 175.40
NI	134554500		Pad,outer Door				$ 14.60
NI	131843500		Lamp   (Replaces: 131862800)				$ 73.00
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25

    View Diagram in Separate Window       Print Part List
