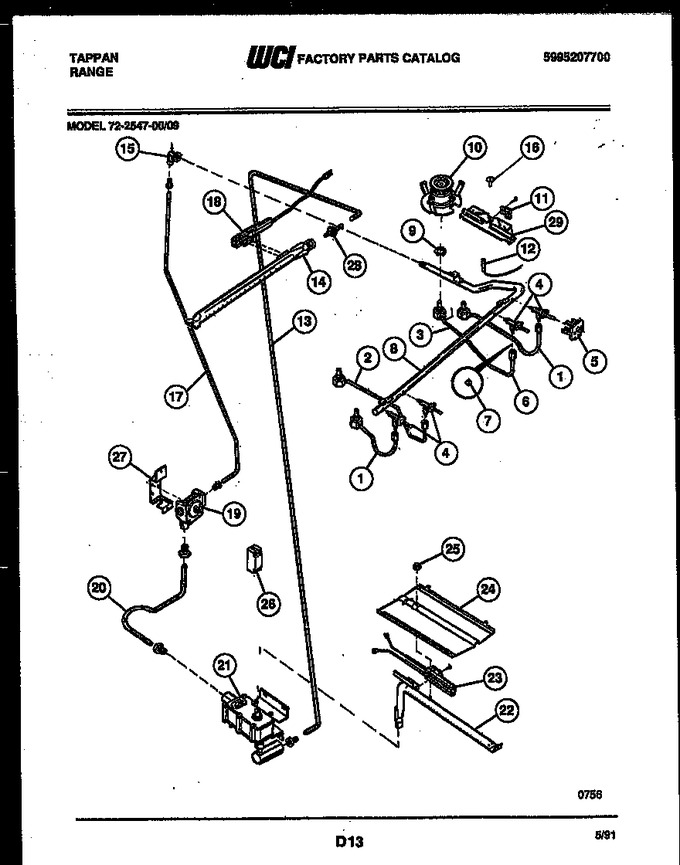

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303131970 | Burner - Tube Lf, Rf |
|
- | |||||
| 2 | 5303011570 | Burner-tube-lr |
|
- | |||||
| 3 | 5303011569 | Burner-tube-rr |
|
- | |||||
| 4 | 5303017542 | Valve-top-2 Pos |
|
- | |||||
| 5 | 3131568 | Ign.-switch |
|
- | |||||
| 6 | 3131148 | Nut Compresn (4) |
|
- | |||||
| 7 | 08067945 | Ferrule (4) |
|
- | |||||
| 8 | 3131440 | Manifold Pipe |
|
- | |||||
| 9 | 3013279 | Nut, Special, 4 |
|
$ 2.34 | |||||
| 10 | 5303011567 | Burner Top (4) |
|
- | |||||
| 11 | 3018617 | Retainer Electros |
|
- | |||||
| 12 | 5303131105 | Electrode (4) |
|
- | |||||
| 13 | 5303211073 | Tube Supply Upper Oven |
|
- | |||||
| 14 | 3200502 | Burnr Upper Ovn |
|
- | |||||
| 15 | 08067948 | Elbow 1/2 Np To 9/16-24 |
|
- | |||||
| 16 | 3051420 | Pop Rivet |
|
- | |||||
| 17 | 5303208495 | Tube Alum 3/8 Reg/manif Pipe |
|
- | |||||
| 18 | 12400035 | Igniter-oven Burner (Replaces: 5303200508) |
|
Immediately | $ 60.44 | ||||
| 19 | 5303208498 | Control-regul |
|
- | |||||
| 20 | 5303208494 | Tube - Alum 3/8 |
|
- | |||||
| 21 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 22 | 5303131634 | Burner-oven |
|
- | |||||
| 23 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 24 | 3203265 | Baffle-oven |
|
- | |||||
| 25 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 26 | 5303200669 | Spark Module |
|
- | |||||
| 27 | 08067934 | Brkt. Regul. |
|
- | |||||
| 28 | 5303211078 | Mixer-straight |
|
- | |||||
| 29 | 3206267 | Channel-flash Tube |
|
$ 46.04 | |||||
| 28A | 3018603 | Brkt Burnr Supt |
|
- | |||||
| 28B | 3131637 | Brkt Mixer |
|
- |
