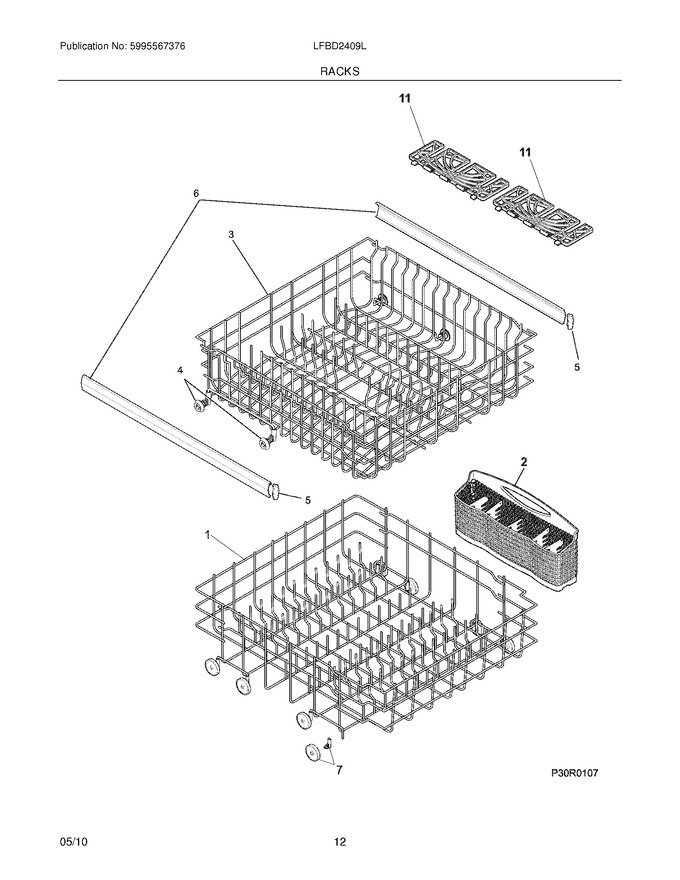

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assy,lower (Replaces: 154319706) |
|
Immediately | $ 162.61 | ||||
| 2 | 5304535382 | Basket,silverware ,grey (Replaces: 154556102) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954072 | Rack Assy,upper (Replaces: 154319524) |
|
Immediately | $ 145.13 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack ,(8) (Replaces: 154522901) |
|
$ 39.54 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174502) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf,cup ,half Width ,grey (Replaces: 154436104) |
|
$ 7.42 | |||||
| NI | 154818702 | Nameplate,rack Spacer ,grey |
|
$ 11.29 |
