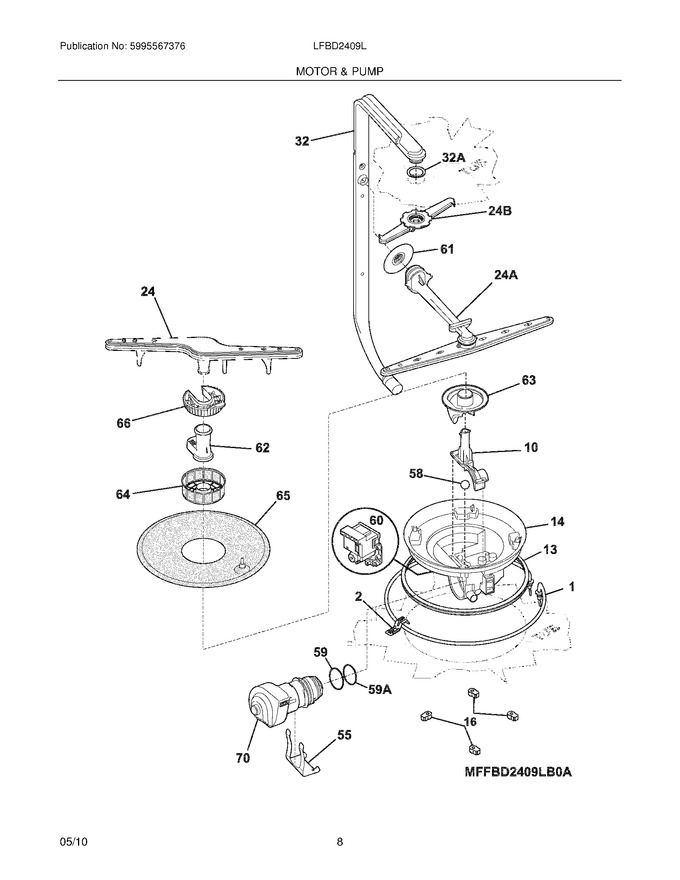

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 154465101 | Bracket,heater ,(2) |
|
Immediately | $ 11.34 | ||||
| 10 | 154724001 | Cover,volute |
|
Immediately | $ 21.07 | ||||
| 13 | 154246801 | Gasket-sump |
|
$ 52.17 | |||||
| 14 | 154728201 | Sump Assembly |
|
Immediately | $ 62.37 | ||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 40.40 | ||||
| 24 | 5304517203 | Spray Arm,grey ,lower ,w/heat Shield (Replaces: 154568002) |
|
Immediately | $ 41.76 | ||||
| 32 | 5304507087 | Tube,delivery (Replaces: 154464101) |
|
Immediately | $ 60.53 | ||||
| 55 | 5304534830 | Bracket,motor (Replaces: 154595901) |
|
$ 5.54 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 55.99 | ||||
| 59 | 154246901 | O-ring,rear |
|
Immediately | $ 56.70 | ||||
| 61 | 5304532204 | Grommet,delivery Tube (Replaces: 154463402) |
|
Immediately | $ 8.58 | ||||
| 62 | 5304532235 | Support,spray Arm ,lower (Replaces: 154294101) |
|
Immediately | $ 7.33 | ||||
| 63 | 5304532205 | Base,soil Director (Replaces: 154776101) |
|
Immediately | $ 13.74 | ||||
| 64 | 5304532205 | Filter,soil Director ,white (Replaces: 154252301) |
|
Immediately | $ 13.74 | ||||
| 65 | 140281806020 | Filter-polypro (Replaces: 154252401) |
|
Immediately | $ 8.85 | ||||
| 66 | 154252701 | Trap,glass |
|
Immediately | $ 56.57 | ||||
| 24A | A01986801 | Spray Arm,center (Replaces: 154792602) |
|
Immediately | $ 188.39 | ||||
| 24B | 5304506516 | Spray Arm,assembly ,upper (Replaces: 154754502) |
|
Immediately | $ 32.14 | ||||
| 32A | 154406401 | Gasket,delivery Tube |
|
Immediately | $ 15.46 | ||||
| 59A | 154247001 | O-ring,front |
|
Immediately | $ 56.70 | ||||
| F1 | 154825001 | Heater,round (Replaces: 154663801) |
|
Immediately | $ 91.19 | ||||
| F60 | A00126401 | Pump Assembly,drain ,w/seal-impeller (Replaces: 154736201) |
|
Immediately | $ 143.00 | ||||
| F70 | 154844301 | Motor Assembly,pump ,w/o-rings (Replaces: 154794401) |
|
Immediately | $ 306.04 | ||||
| NI | 154741501 | Screw,drain Motor Mtg ,(3) |
|
$ 13.46 | |||||
| NI | 5303316032 | Screw,truss Ss ,8 .625 ,(7) |
|
$ 10.45 | |||||
| NI | 154491101 | Screw,delivery Tube |
|
$ 3.62 | |||||
| NI | 154611101 | Clamp,hose ,1.29`` Open ,worm Gear ,(2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| NI | 154754901 | Screw,sump Mtg ,8-16 ,(4) |
|
Immediately | $ 4.26 | ||||
| NI | 154289801 | Shield-heater Terminal |
|
$ 7.33 | |||||
| NI | 154106202 | Nut,heater ,(2) |
|
Immediately | $ 18.32 | ||||
| NI | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154297701 | Screw,retainer-thermo |
|
$ 13.46 | |||||
| NI | 807048001 | Flapper,valve ,drain Pump (Replaces: 154617301) |
|
Immediately | $ 8.90 |
