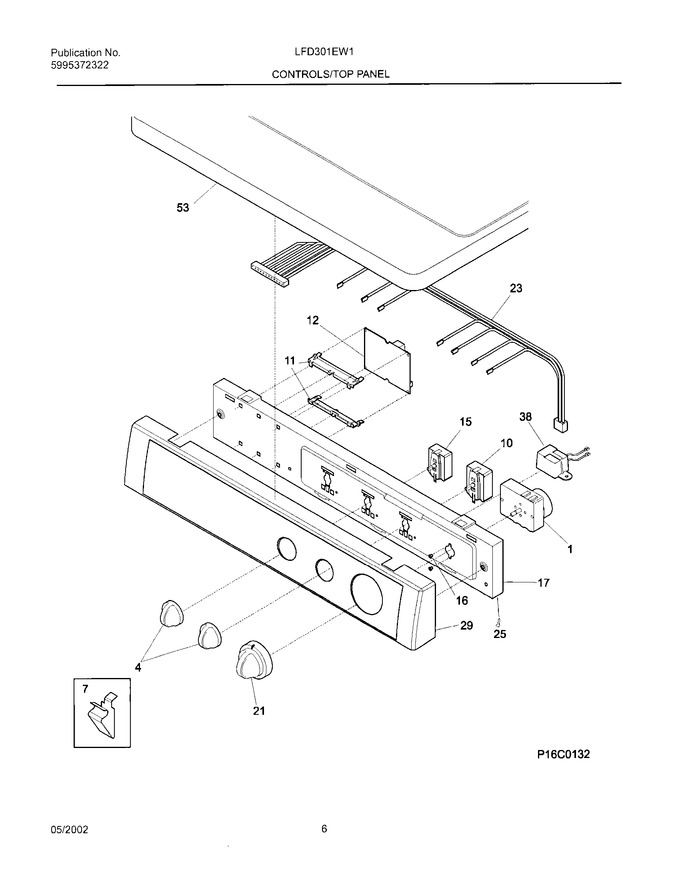

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet/drum
05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131905500 | Timer-dryer H-elec/gas Ms |
|
$ 341.95 | |||||
| 4 | 131965300 | Knob-rot-dryer Wht/drk Gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Cllip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket-control Board |
|
$ 44.40 | |||||
| 12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| 15 | 131641900 | Switch-temperature |
|
- | |||||
| 16 | 134034300 | Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming |
|
- | |||||
| 17 | 134064501 | Brkt-cont Mtg-stack Dryer |
|
$ 76.13 | |||||
| 21 | 131873500 | Asmy-knob/ind Wht/drk Gray Ft1 |
|
Immediately | $ 49.62 | ||||
| 23 | 134008400 | Harness-electrical |
|
- | |||||
| 25 | 5303015671 | Screw,8-18 X .375 |
|
- | |||||
| 29 | 131666933 | Asmy-cons Frame/tape/trim |
|
- | |||||
| 38 | 5303286537 | Buzzer |
|
$ 93.61 | |||||
| 53 | 134086812 | Panel-top Stack Dryer Wht |
|
$ 336.42 | |||||
| 134110500 | Harness-main Stack |
|
$ 251.95 |
