New Model Search:

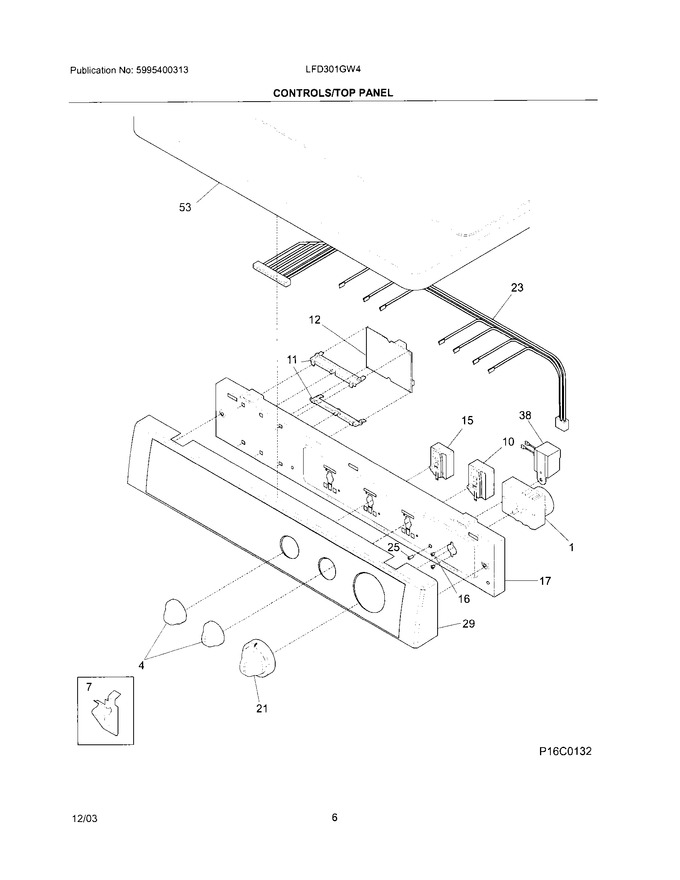

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131905500 | Timer,dryer |
|
$ 341.95 | |||||
| 4 | 131965300 | Knob,rotary ,white/gray |
|
Immediately | $ 53.15 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch,start ,turn Type (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket,pc Board Mtg. |
|
$ 44.40 | |||||
| 12 | 134216300 | Control Board,moisture Sensor |
|
$ 67.62 | |||||
| 15 | 131641900 | Switch,temperature ,4 Posn Rotary |
|
- | |||||
| 16 | 134034300 | Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob,timer ,white/gray ,assy |
|
Immediately | $ 49.62 | ||||
| 23 | 134009400 | Wiring Harness,controls |
|
- | |||||
| 23 | 134006600 | Wiring Harness,main |
|
$ 277.78 | |||||
| 25 | 5303015671 | Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point |
|
- | |||||
| 29 | 131666933 | Asmy-cons Frame/tape/trim |
|
- | |||||
| 38 | 5303286537 | Buzzer |
|
$ 93.61 | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 |
