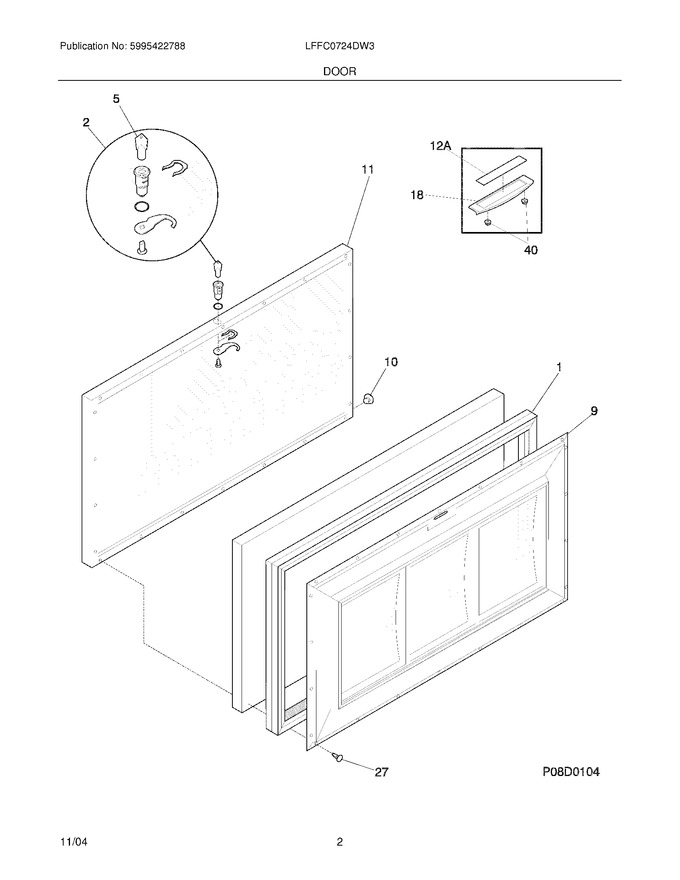

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480901		Gasket,door Seal ,white				$ 107.26
2	5303925107		Lock Assy		Appelez-nous	-
9	216061600		Panel-inner Door/lid, White				$ 142.75
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216113103		Panel-outer Door\lid,white		Appelez-nous	-
18	216446600		Handle				$ 43.42
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
12A	216816801		Insert-nameplate				$ 29.61
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5303313518		Washer, Sealing		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
