Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316066300 Bracket-broiler Hinge, Lh Appelez-nous -
2 3131386 Fastener, Push Nut (2) Appelez-nous -
3 3018608 Body, Broiler Appelez-nous -
4 3018614 Pin, Hinge (2) Appelez-nous -
5 3018618 Spring, Broiler Lh C Type Appelez-nous -
6 3202803 Liner, Broiler Drawer Appelez-nous -
7 316056205 Panel-broiler, White Appelez-nous -
8 5303280334 Handle Appelez-nous -
9 3131387 Fastener-nylon Spacer (2) Appelez-nous -
10 3018610 Glide, Broiler (4) Special Order $ 29.40

11 5303131356 Insert-broiler Pan Appelez-nous -
12 5303013568 Pan-broiler Appelez-nous -
13 3131153 Channel, Broiler (4) Appelez-nous -
*10553 3206216 Button Glide Appelez-nous -
12A 5303131258 Insul - Broiler Drawer (non-illustrated) Appelez-nous -
12B 5303051818 Screw (2) (non-illustrated) Appelez-nous -
1A 316066301 Bracket-broiler Hinge, Rh Appelez-nous -
5A 3018619 Spring, Broiler, Rh, C Type Appelez-nous -

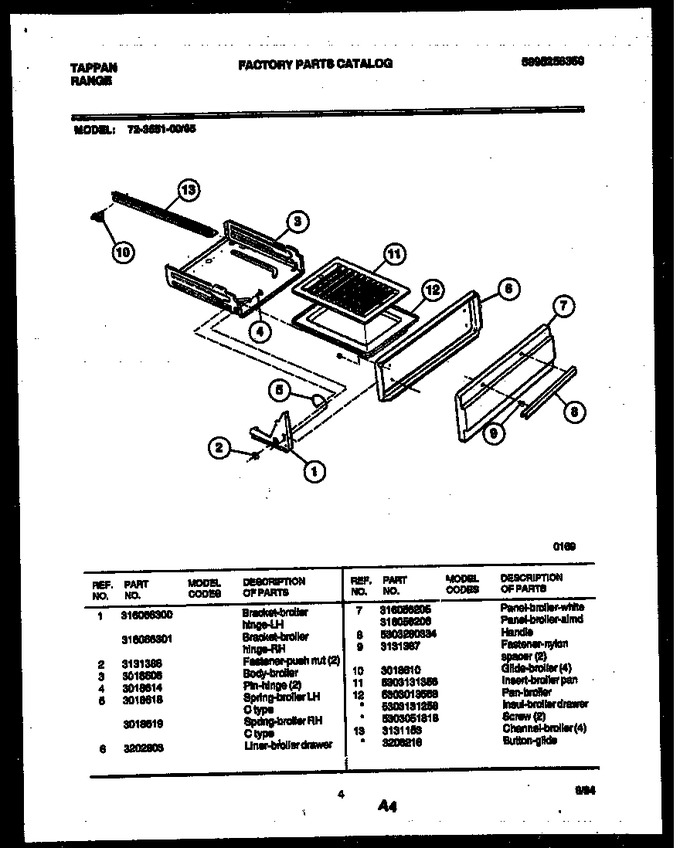

    View Diagram in Separate Window     Print Icon   Print Part List
