SELECT A DIAGRAM

01 - Cover


03 - Door

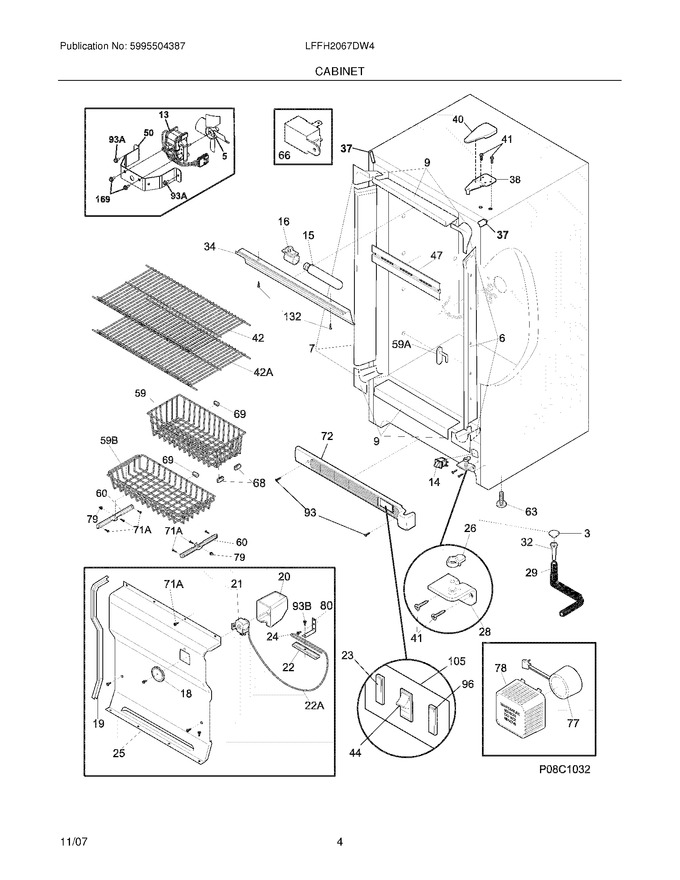

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
7	297201100		Breaker Kit W/corners,lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
19	216204901		Gasket-cover Evap				$ 9.08
20	216967201		Cover,temp Control   (Replaces: 216967200)				$ 15.18
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 83.14
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	297087400		Light,signal ,amber		Appelez-nous	-
24	5304460604		Screw,type A ,10-24 X 3/8		Appelez-nous	-
25	297099000		Cover-evaporator				$ 83.16
26	216503300		Ramp,door Closer				$ 8.82
28	297164500		Hinge-bottom,stepped Pin				$ 37.76
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816223		Shield-light		Appelez-nous	-
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297119700		Shelf,wire ,16.69x27.88 ,white ,(3)		Appelez-nous	-
44	216823300		Switch-rocker				$ 47.15
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	216826500		Basket		Appelez-nous	-
60	297013500		Slide,basket				$ 38.98
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper-basket,(4)				$ 7.23
72	297036902		Grille/kickplate,32`` ,white				$ 40.26
78	297013301		Housing-sensor		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
96	297087500		Light-signal,red		Appelez-nous	-
105	216926700		Shield				$ 42.06
105	216926600		Bracket,alarm, 2 Lights		Appelez-nous	-
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216458400		Shelf,14.50x27.88		Appelez-nous	-
59A	216486500		Stop-basket,(2)				$ 20.58
59B	297118900		Basket		Appelez-nous	-
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
93B	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
F66	216713700		Buzzer,alarm				$ 74.60
F77	5308037992		Sensor Assy				$ 167.58
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216273000		Clip, Drain Hose				$ 22.42
NI	216790600		Harness,alarm		Appelez-nous	-
NI	216977200		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216502400		Grommet-shelf Mtg				$ 16.63

    View Diagram in Separate Window       Print Part List
