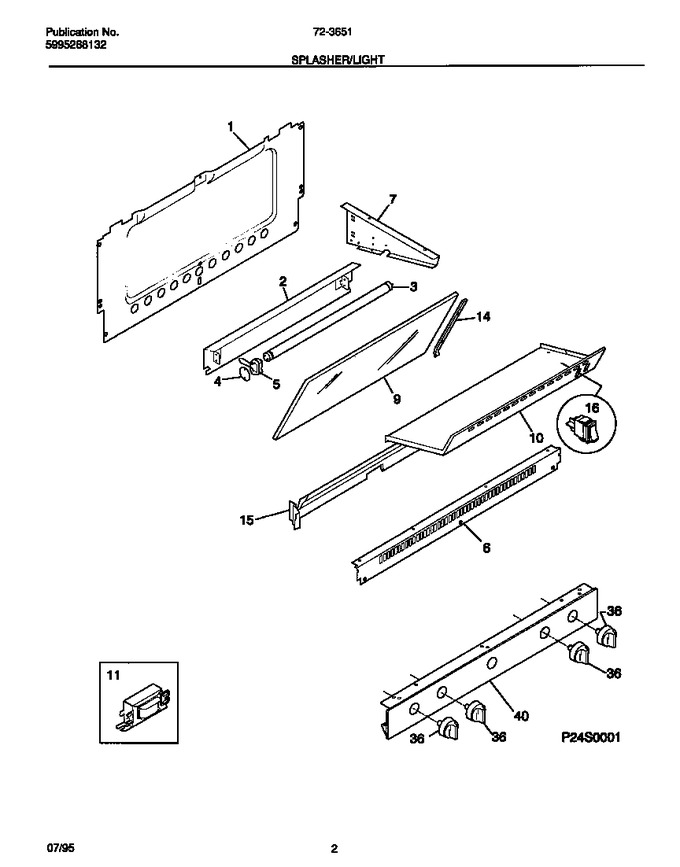

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204441		Panel-back		Appelez-nous	-
2	5303208612		Reflector, Work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303935003		Receptacle-starter		Appelez-nous	-
6	5303269816		Trim-vent		Appelez-nous	-
7	3200526		Support-upper Oven, Rh		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	5303051115		Ballast-lamp		Appelez-nous	-
14	08010549		Trim-splasher, Rh		Appelez-nous	-
15	5303209039		Trim-splasher Filler		Appelez-nous	-
16	5303208662		Switch-oven Light, Rocker Type		Appelez-nous	-
36	5303209616		Knob-top Valve, (4)		Appelez-nous	-
40	5303209617		Panel-manifold		Appelez-nous	-
*41720	5303282715		Receptacle-starter		Appelez-nous	-
*41721	3206218		Starter-lamp				$ 54.08
14A	5303269815		Trim-splasher, Lh (not Illustrated)		Appelez-nous	-
7A	3200527		Support-upper Oven, Lh (not Illustrated)		Appelez-nous	-
