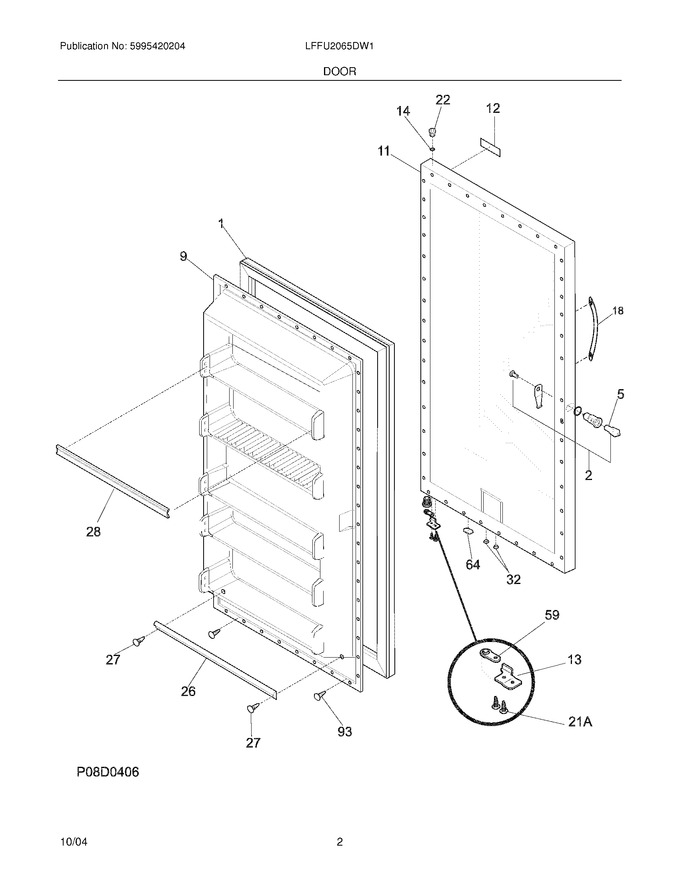

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
2	5303925107		Lock Assy		Appelez-nous	-
9	216528113		Panel-inner Door,frzr				$ 231.76
11	216531251		Panel-outer Door,white		Appelez-nous	-
12	216892800		Nameplate		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216921200		Handle,white		Appelez-nous	-
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216951600		Rack-door,(6)				$ 69.40
32	5309950074		Valve,breather ,door Base				$ 12.48
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	5303271077		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 8.82
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216932500		Nut,flange Locking ,handle		Appelez-nous	-
