SELECT A DIAGRAM

01 - Cover

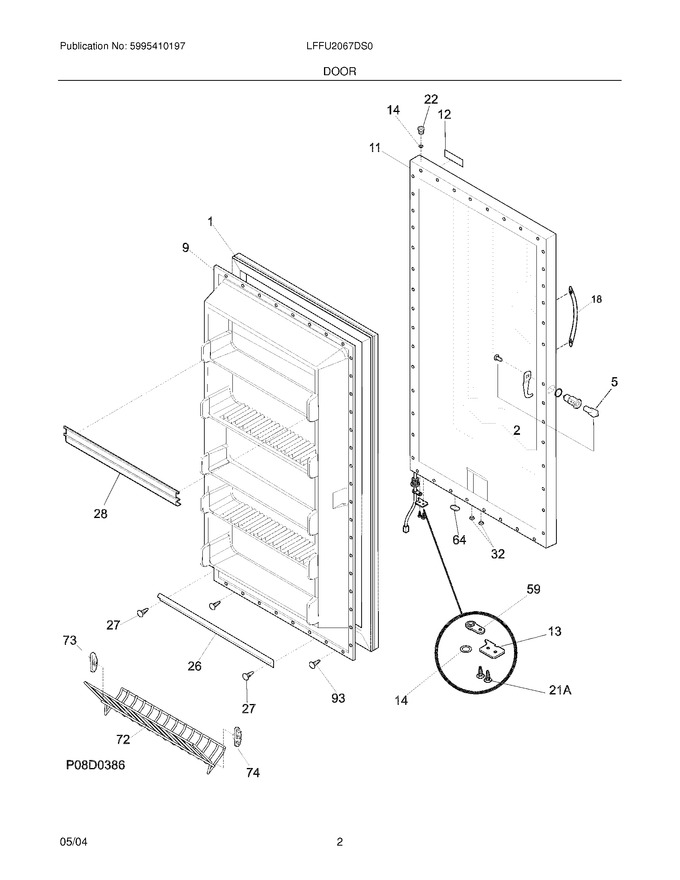

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507205		Gasket,black ,door   (Replaces: 216522317)				$ 180.64
2	5303925107		Lock Assy		Appelez-nous	-
9	216528113		Panel-inner Door,frzr				$ 231.76
11	216531246		Panel-outer Door,stainless		Appelez-nous	-
12	240558802		Label-nameplate				$ 3.03
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	240536802		Handle-door,stainless Steel ,with Insert				$ 126.11
22	5303925197		Bearing,hinge ,top				$ 23.73
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806100		Rack-door,contour ,(4)				$ 80.59
32	5309950074		Valve,breather ,door Base				$ 12.48
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	5303271077		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 8.82
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
NI	5303269745		Nut-anchor,door Hdl Screw				$ 1.05
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60

    View Diagram in Separate Window       Print Part List
