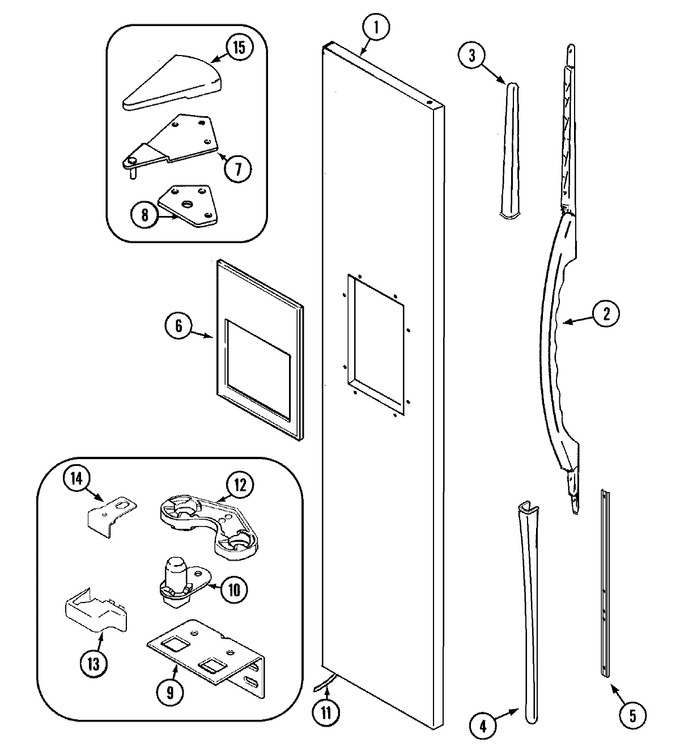

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005026		Panel, Frz. Door (bsq)	11	Appelez-nous	-
2	61005482		Screw	11	Appelez-nous	-
2	61005443		Handle, Door (bsq)	11	Appelez-nous	-
2	61005394		Screw	11			$ 6.24
3	61005446		Extension, Handle (upr-bsq)	11	Appelez-nous	-
4	61005495		Extension, Handle (lwr-bsq)	11	Appelez-nous	-
5	61005394		Screw	11			$ 6.24
5	61005496		Cleat, Handle Extension	11	Appelez-nous	-
6	61005576		Escutcheon (bsq)	11	Appelez-nous	-
6	489392		Screw   (Replaces: 415013-35)	11			$ 12.02
7	WP3-24838-048		Screw   (Replaces: 61004763)	11			$ 7.00
7	61004896		Hinge, Upper	11			$ 36.71
8	61001922		Shim, Upper Hinge	11			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	11			$ 62.96
9	61004764		Hinge, Lower (bsq)	11	Appelez-nous	-
10	61003174		Pin, Lower Hinge	11			$ 6.22
11	61004557		Tubing, Fountain	11	Appelez-nous	-
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61001614)	11		Immediately	$ 26.15
12	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
12	61003647		Closer, Door (natural)	11			$ 10.19
13	61004769		Cover, Lower Hinge (bsq)	11	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
14	61003273		Stop, Door	11	Appelez-nous	-
15	61004771		Cover, Upper Hinge (bsq)	11	Appelez-nous	-
15	WP8281196		Screw, Cover   (Replaces: 61004641)	11		Immediately	$ 6.47
