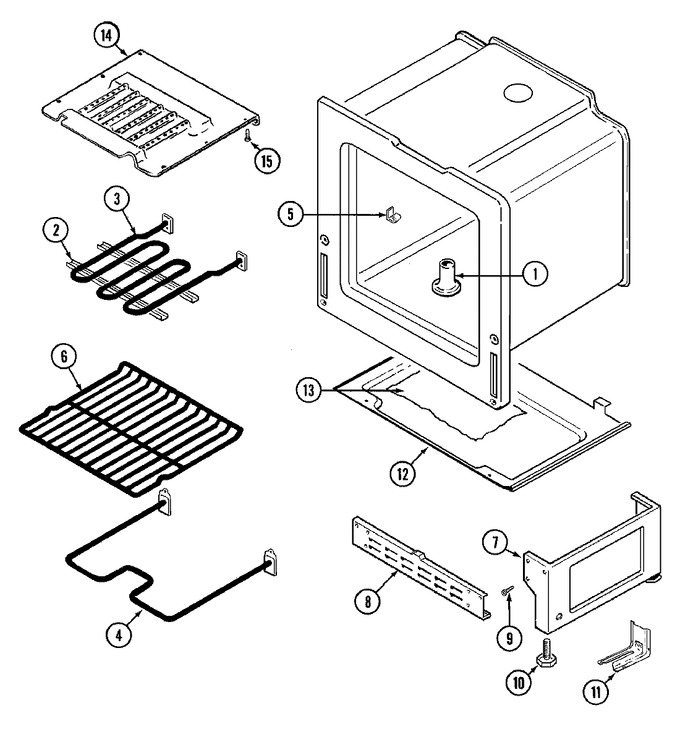

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
1	8026P019-60		Tube, Vent	39	Appelez-nous	-
2	3807F387-45		Support, Broil Element	39	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P345-60)	39		Immediately	$ 10.94
3	7406P072-60		Element, Broil	39	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
4	WP74003019		Element, Bake   (Replaces: Y04000058)	39		Immediately	$ 51.10
5	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	39		Immediately	$ 11.07
6	WPW10282492		Rack, Oven   (Replaces: 7801P047-60)	39		Immediately	$ 65.15
7	74003016		Pedestal, Side	45	Appelez-nous	-
7	4020W017-80		Pedestal, Sides	39	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	39	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
10	74001311		Leg, Leveling	39	Appelez-nous	-
10	W11665456		Leg, Leveling   (Replaces: 74002373)	45		Immediately	$ 25.30
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	39		Immediately	$ 4.69
11	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	39			$ 26.33
12	3804F112-51		Retainer, Insulation	39	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62
13	8312P058-60		Foil, Insulation Retainer	39	Appelez-nous	-
14	3601F237-47		Baffle, Broil	39	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	39		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
