Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3014099 Spacer-bodyside, (8) Special Order $ 3.62

3 3014073 Socket-ovn. Light Appelez-nous -
4 40A15 Light Bulb   (Replaces: 5303013071) In-Stock Immediately $ 1.98

5 316007001 Chanl Dr Hng (2) Special Order $ 234.55

6 3131570 Cover Hng. Cutout (2) Special Order $ 7.35

7 316029405 Back-main Appelez-nous -
8 3131660 Shield, Rear Wall Appelez-nous -
9 3011813 Clip-wire Special Order $ 14.79

10 3131904 Flue Appelez-nous -
11 08067965 Gasket-flue Appelez-nous -
12 08067757 Cover Plate Appelez-nous -
13 3011597 Burner Box Appelez-nous -
14 5303269543 Panel-bodyside Rh (almond) Appelez-nous -
15 3206285 Screw-level (4) Appelez-nous -
16 5303281625 Rack Oven Appelez-nous -
17 5303300701 Bottom-oven Appelez-nous -
18 5303284616 Clip Thermo Bulb (2) Special Order $ 9.86

19 08067962 Fstnr, Wire Appelez-nous -
20 5303281627 Base-broil Appelez-nous -
21 3203010 Fstnr Hinge (4)   (Replaces: 5303012323) Special Order $ 14.89

22 5303208642 Tube-post Lh Appelez-nous -
23 3018607 Cover Ign. Special Order $ 10.50

24 5303271606 Housing,oven Light Appelez-nous -
*10554 5303288460 Fstnr Leveler Nut Special Order $ 27.14

*10554 19100220001 Diagram Wiring- (not For Purchase.) Appelez-nous -
14A 5303269545 Panel Bodyside Lh (almond) Appelez-nous -
17A 3017142 Insul - Oven Wrap (non-illustrated) Special Order $ 193.50

17B 316054200 Insul-oven-back (non-illustrated) Appelez-nous -
18A 08067961 Fastener-power Cord Appelez-nous -
19A 316064600 Supt-ovn Btm (2) Special Order $ 18.95

20A 3131244 Cover-power Cord, (non-illustrated) Appelez-nous -
21A 5303015372 Cover Frnt Main (non-illustrated) Appelez-nous -
22A 5303208643 Tube-post-rh (non-illustrated) Appelez-nous -
22B 3200498 Insul Wool (non-illustrated) Appelez-nous -
22C 316282700 Screw Oven Btm (2) (non-illustrated)   (Replaces: 3131732) Special Order $ 9.93

22D 3131620 Shield-heat (non-illustrated) Appelez-nous -
23A 3934056 Anti-tip Brkt (non-illustrated) Appelez-nous -
6A 5304534000 Cord, Power (non-illustrated)   (Replaces: 3131425) In-Stock Immediately $ 33.37


    View Diagram in Separate Window     Print Icon   Print Part List

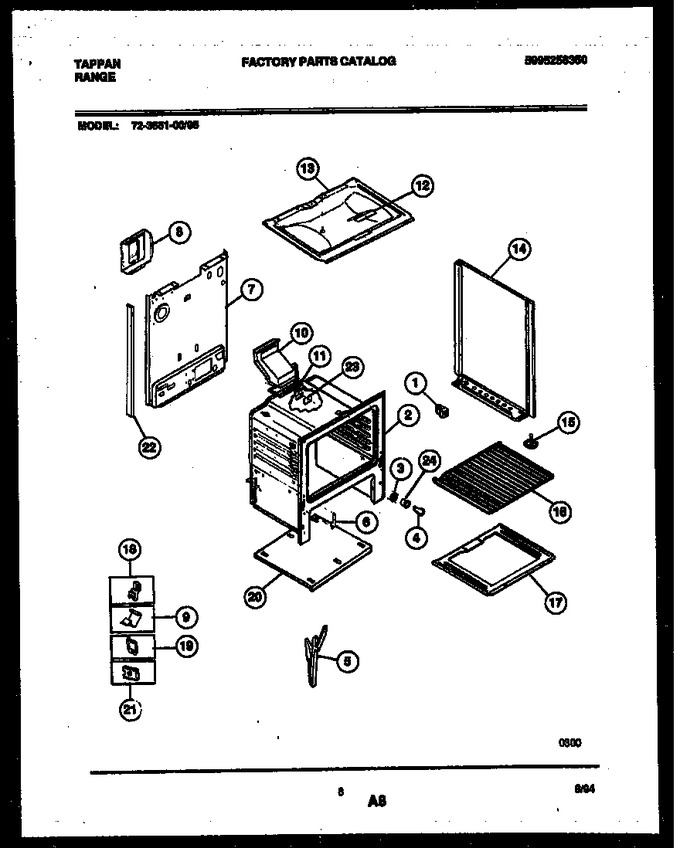

Diagram for 72-3651-23-05
