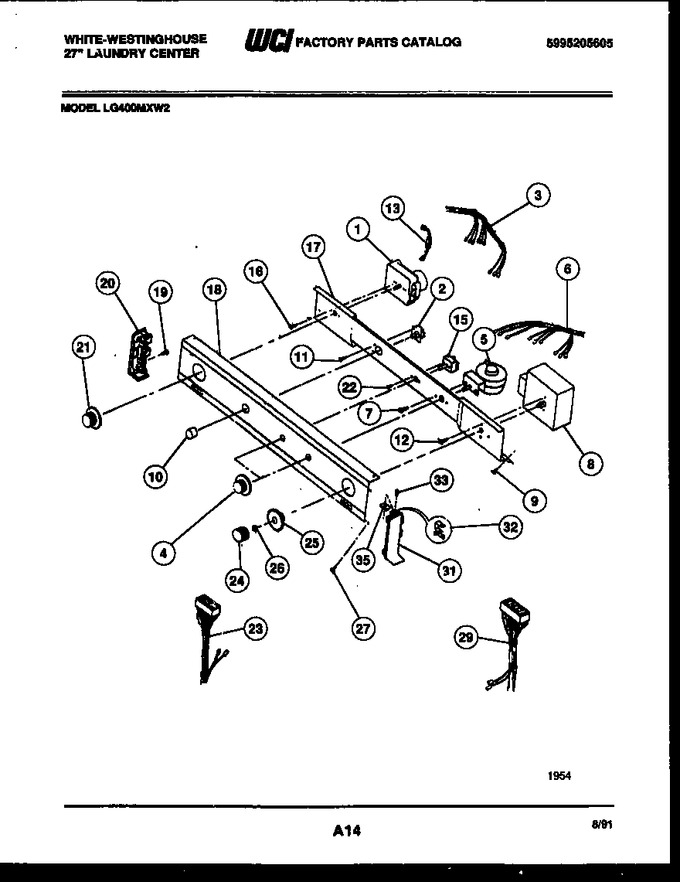

02 - Cabinet And Component Parts
03 - Motor, Blower And Cabinet Parts
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212897 | Timer-dryer |
|
- | |||||
| 2 | 5303209890 | Switch-start |
|
- | |||||
| 3 | 5303211052 | Harness-dryer Control |
|
- | |||||
| 4 | 131858004 | Knob-rotary 3) (Replaces: 5303210338) |
|
Immediately | $ 55.29 | ||||
| 5 | 5303937062 | Switch - Water Level |
|
- | |||||
| 6 | 5303209895 | Harness-washer Control |
|
- | |||||
| 7 | 5303161233 | Screw |
|
- | |||||
| 8 | 5303209896 | Timer - Washer |
|
- | |||||
| 9 | 5303207399 | Screw |
|
- | |||||
| 10 | 3205632 | Push Button |
|
- | |||||
| 11 | 08001544 | Screw |
|
- | |||||
| 12 | 3161188 | Screw |
|
- | |||||
| 13 | 3205877 | Resistor |
|
$ 51.14 | |||||
| 15 | 5308014346 | Switch-temperature |
|
- | |||||
| 16 | 3161188 | Screw |
|
- | |||||
| 17 | 3205639 | Bracket |
|
- | |||||
| 18 | 5303270949 | Panel-control |
|
- | |||||
| 19 | 5303161233 | Screw |
|
- | |||||
| 20 | 5303209671 | End Cap-lh |
|
- | |||||
| 21 | 131859104 | Knob-dryer (Replaces: 5303210340) |
|
Immediately | $ 60.72 | ||||
| 22 | 3161259 | Screw |
|
$ 6.83 | |||||
| 23 | 5303271182 | Harness-dryer |
|
- | |||||
| 24 | 5303210341 | Knob-washer |
|
- | |||||
| 25 | 5303209901 | Indicator |
|
- | |||||
| 26 | 3205248 | Spacer-shaft |
|
$ 13.02 | |||||
| 27 | 3205253 | Screw |
|
- | |||||
| 29 | 3205645 | Harness-washer |
|
- | |||||
| 31 | 5303210650 | End Cap-rh |
|
- | |||||
| 32 | 3204357 | Clip - Ground |
|
$ 60.11 | |||||
| 33 | 08010789 | Screw |
|
- | |||||
| 35 | 5308014350 | Clip |
|
- | |||||
| *50068 | 5303210651 | Spacer Pad-control Panel Bracket |
|
- |
