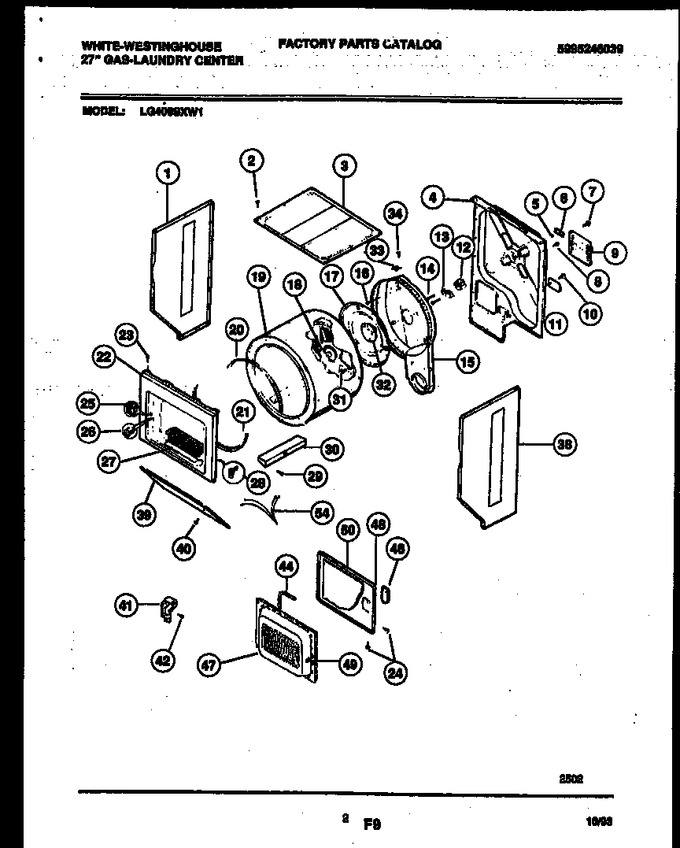

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084701 | Panel-side-almond |
|
- | |||||
| 2 | 08011280 | Screw |
|
- | |||||
| 3 | 3204247 | Panel-top |
|
- | |||||
| 4 | 5303283283 | Panel-rear |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip |
|
$ 17.01 | |||||
| 7 | 08011280 | Screw |
|
- | |||||
| 8 | 08011280 | Screw |
|
- | |||||
| 9 | 3204249 | Panel-motor Access |
|
- | |||||
| 10 | 08011280 | Screw |
|
- | |||||
| 11 | 5303207395 | Cover-terminal Block |
|
- | |||||
| 12 | 131825900 | Rear Bearing (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 5303281033 | Screw |
|
- | |||||
| 15 | 5303207394 | Heater Housing & Duct |
|
$ 385.88 | |||||
| 16 | 5303212866 | Screw (4) |
|
- | |||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 5303205255 | Screw (3) |
|
$ 5.04 | |||||
| 19 | 134138400 | Drum (Replaces: 5303283284) |
|
$ 591.10 | |||||
| 20 | DE790 | Drum, Glide (Replaces: 131154800) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Felt-lower |
|
$ 48.04 | |||||
| 22 | 131150703 | Panel-front-almond |
|
- | |||||
| 23 | 08011280 | Screw |
|
- | |||||
| 24 | 3281176 | Screw (6) |
|
- | |||||
| 25 | 5366021400 | Door-catch (Replaces: 5303281055) |
|
Immediately | $ 55.99 | ||||
| 26 | 5308001614 | Switch-door |
|
- | |||||
| 27 | WG04L05872 | Lint Trap (Replaces: 131152700) |
|
$ 90.50 | |||||
| 28 | 5303281074 | Guide Clip (4) |
|
$ 18.27 | |||||
| 29 | 131382300 | Screw (6) (Replaces: 3202754) |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (3) (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 5303207393 | Screw (3) |
|
$ 6.14 | |||||
| 32 | 5303281153 | Support Shaft (Replaces: 5303281009) |
|
Immediately | $ 46.64 | ||||
| 33 | 5303207396 | Thermostat-safety |
|
- | |||||
| 34 | 5303161233 | Screw |
|
- | |||||
| 38 | 131084801 | Panel-side-almond |
|
- | |||||
| 39 | 131084403 | Panel-access-almond |
|
- | |||||
| 40 | 131202300 | Screw |
|
Immediately | $ 13.46 | ||||
| 41 | 3204275 | Hinge-upper |
|
$ 62.95 | |||||
| 42 | 3204277 | Screw - Hinge To Front (4) |
|
- | |||||
| 42 | 3205239 | Screw-hinge To Door (4) |
|
- | |||||
| 46 | 3204282 | Door Handle-almond |
|
- | |||||
| 47 | 5303300246 | Inner Door-almond |
|
- | |||||
| 48 | 3204285 | Outer Door-almond |
|
- | |||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Heat Shield (Replaces: 3204286) |
|
$ 60.25 | |||||
| 54 | 3205631 | Harness-door Switch |
|
- | |||||
| *82359 | 5303209889 | Hole Plug/front Panel |
|
- | |||||
| 41A | 3204276 | Hinge-lower |
|
- |
