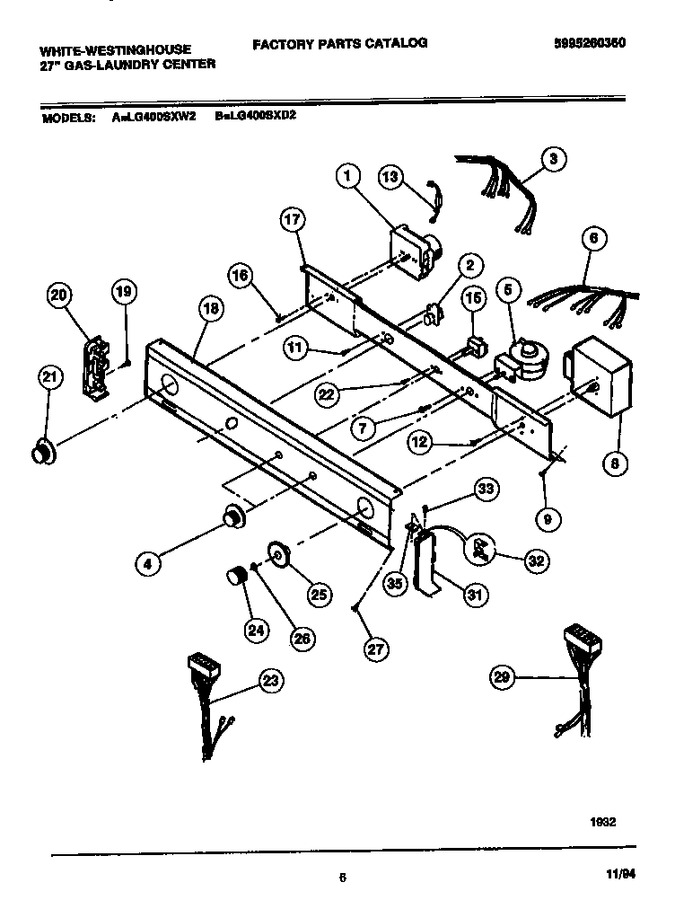

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062700		Timer-dryer		Appelez-nous	-
2	5303209890		Switch-start		Appelez-nous	-
3	5303211052		Harness-dryer Control		Appelez-nous	-
4	131858004		Knob-rotary (2)   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch-water Level		Appelez-nous	-
6	131081900		Harness-washer Control		Appelez-nous	-
7	131168200		Screw			Immediately	$ 14.18
8	5303271776		Timer-washer		Appelez-nous	-
9	131168200		Screw			Immediately	$ 14.18
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	218359202		Screw   (Replaces: 5303283289)				$ 10.63
13	3205877		Resistor				$ 51.14
15	131227800		Switch-temperature				$ 146.37
16	218359202		Screw   (Replaces: 5303283289)				$ 10.63
17	131288002		Bracket-control		Appelez-nous	-
18	5303270949		Panel-control		Appelez-nous	-
19	131243700		Screw (4)				$ 3.36
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Knob-dryer   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw				$ 6.83
23	131201800		Harness-dryer		Appelez-nous	-
24	5303210341		Knob-washer		Appelez-nous	-
25	5303209901		Indicator-washer Timer		Appelez-nous	-
26	3205248		Spacer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131200500		Harness-washer		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	134156200		Screw (4)   (Replaces: 131209600)			Immediately	$ 14.89
35	5308014350		Clip (4)		Appelez-nous	-
